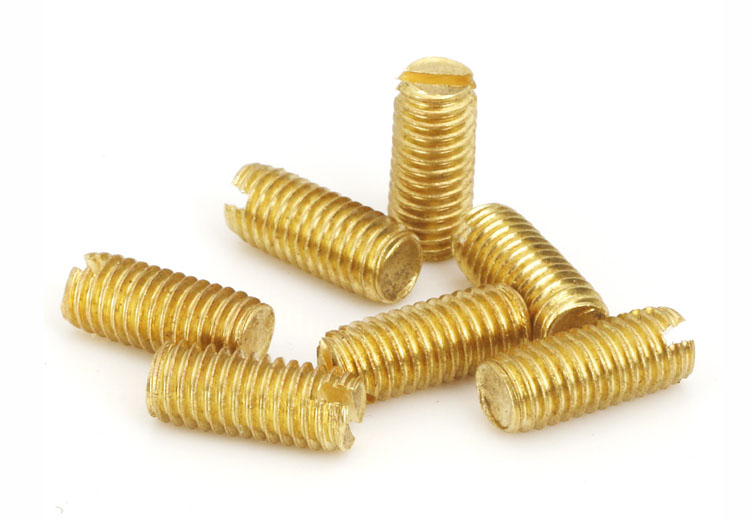

Copper slotted set screws

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    DIN916, ISO4028-1993,DIN915-1980

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Tin, Black,chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Aluminum, Copper, Brass, Stainless steel, Steel, Iron, Alloy, Nylon,etc.

  • Size:

    also customized.

  • MOQ:

    Feel free t contact us for further inquiry.
inquiry now

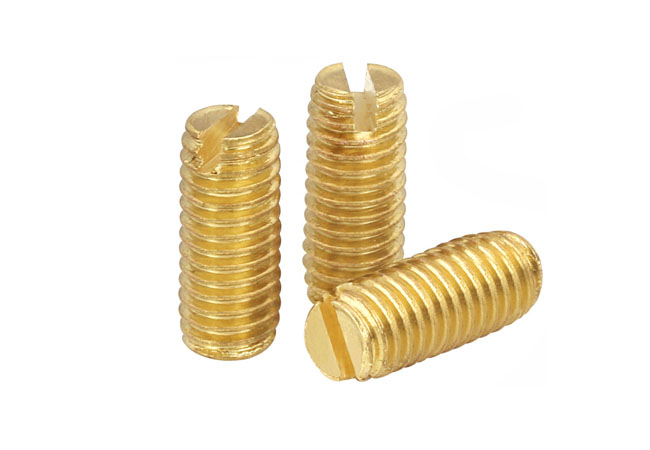

product details

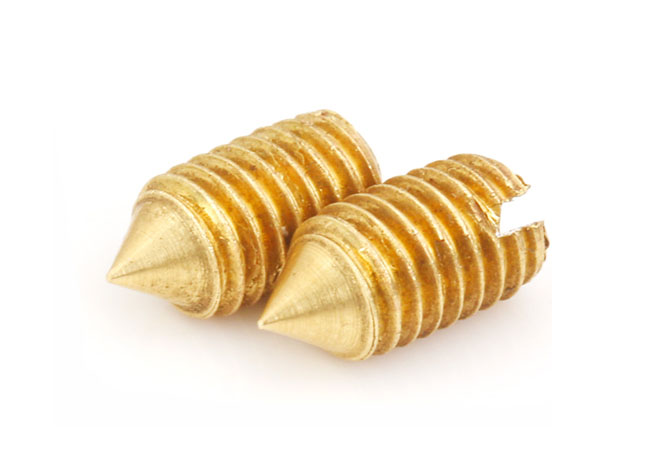

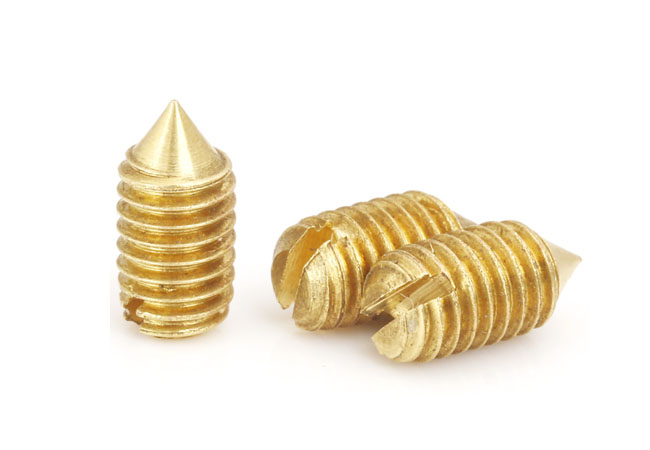

Hexagon Socket Cup Point Set Screw DIN916,Flat point ,Cone point set screw,Hexagon set screw with Dog point, ISO4028-1993,DIN915-1980, available for ISO ROHS,SGS ,Building Industry Machinery

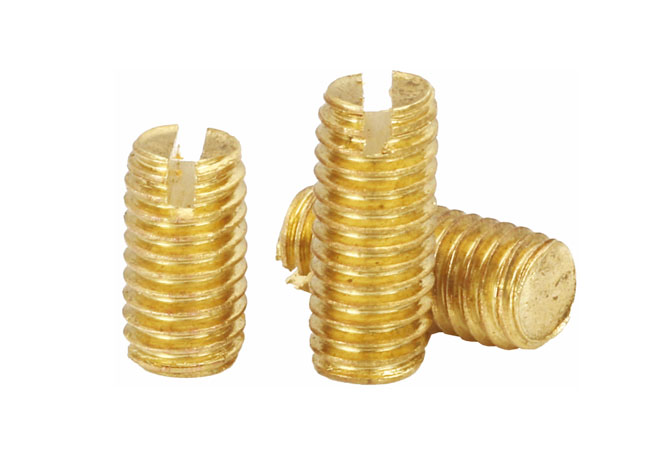

A socket set screw is also called a grub screw. It has no head and is typically tightened or loosened with a square or hex key, although a slotted set screw can be adjusted with a screwdriver. Socket set screws prevent movement of a pulley or similar machine part relative to a shaft. A cup point set screw has a rounded tip that offers excellent grip while also resisting deforming of the shaft surface. A flat point screw provides more contact with the shaft.

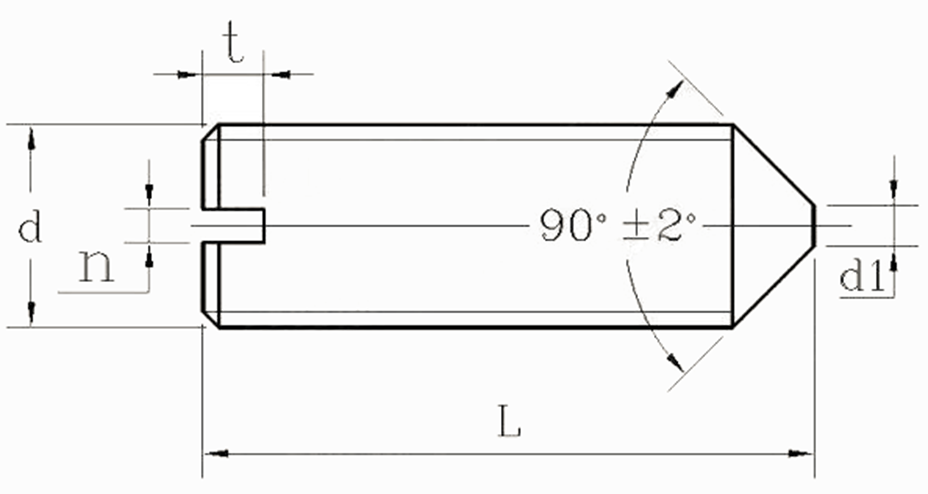

Screw Thread d M1 M1.2 M1.4 M1.6 M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10 M12
P Pitch 0.25 0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75
d1 max 0.1 0.12 0.14 0.16 0.2 0.25 0.3 0.35 0.4 0.5 1.5 2 2.5 3
n max 0.4 0.4 0.4 0.45 0.45 0.6 0.6 0.7 0.8 1 1.2 1.51 1.91 2.31
min 0.26 0.26 0.26 0.31 0.31 0.46 0.46 0.56 0.66 0.86 1.06 1.26 1.66 2.06
t max 0.52 0.52 0.63 0.74 0.84 0.95 1.05 1.21 1.42 1.63 2 2.5 3 3.6
min=nominal size 0.4 0.4 0.48 0.56 0.64 0.72 0.8 0.96 1.12 1.28 1.6 2 2.4 2.8

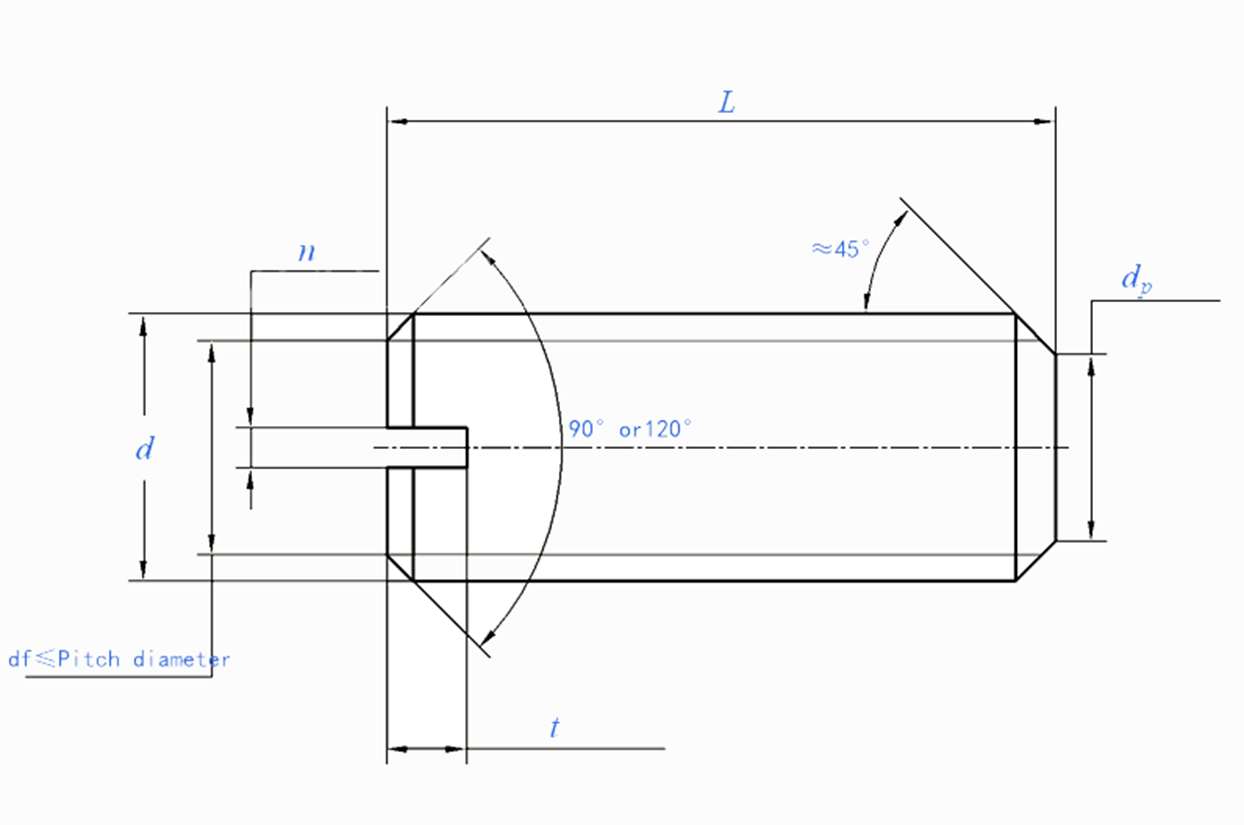

Screw Thread d M1 M1.2 M1.4 M1.6 M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10 M12
P Pitch 0.25 0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75
dp max=nominal size 0.5 0.6 0.7 0.8 1 1.5 2 2.2 2.5 3.5 4 5.5 7 8.5
min 0.25 0.35 0.45 0.55 0.75 1.25 1.75 1.95 2.25 3.2 3.7 5.2 6.64 8.14
n max 0.4 0.4 0.4 0.45 0.45 0.6 0.6 0.7 0.8 1 1.2 1.51 1.91 2.31
min 0.26 0.26 0.26 0.31 0.31 0.46 0.46 0.56 0.66 0.86 1.06 1.26 1.66 2.06
t max 0.52 0.52 0.63 0.74 0.84 0.95 1.05 1.21 1.42 1.63 2 2.5 3 3.6
min=nominal size 0.4 0.4 0.48 0.56 0.64 0.72 0.8 0.96 1.12 1.28 1.6 2 2.4 2.8
