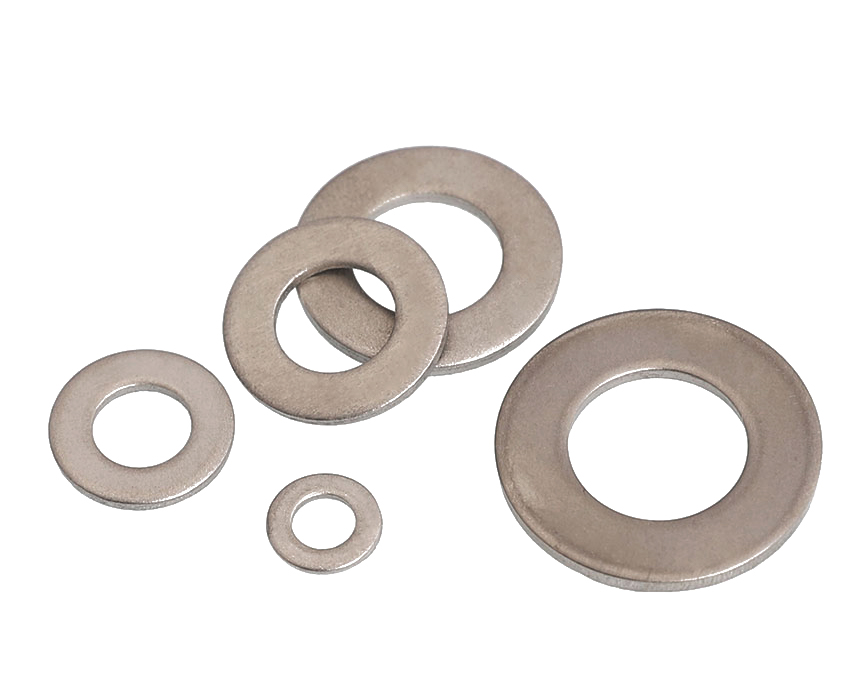

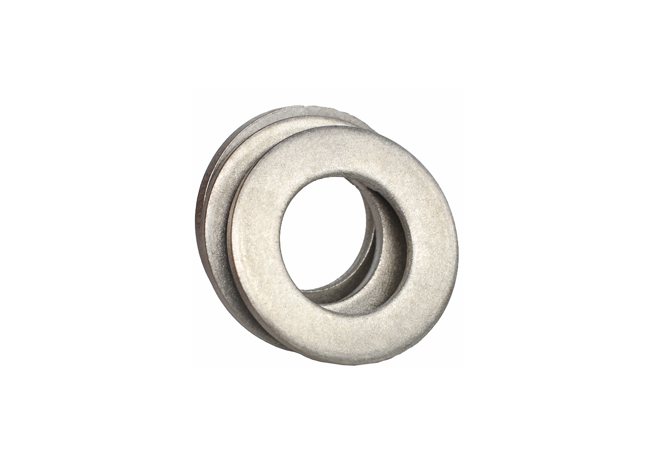

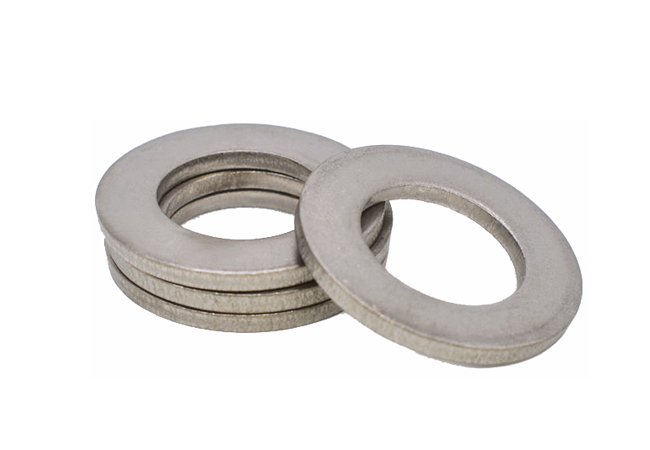

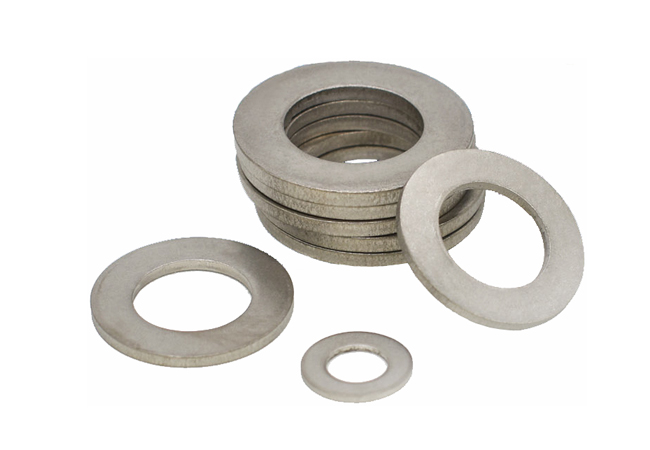

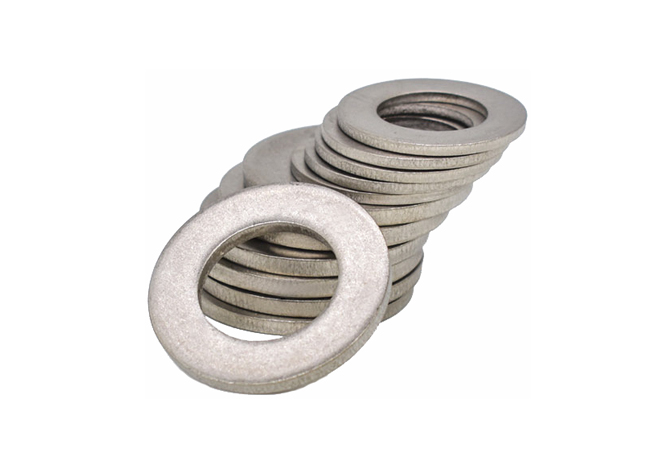

Titanium washers are extremely corrosion resistant for use in marine environments and chemical-processing plants.

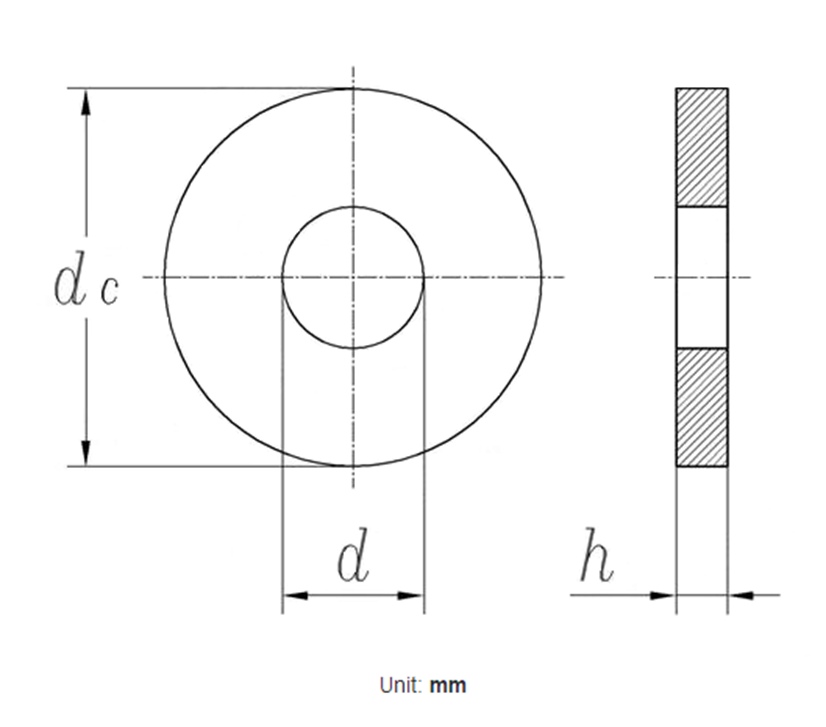

| Nominal Diameter d | Φ1.6 | Φ2 | Φ2.5 | Φ3 | (Φ3.5) | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | (Φ14) | Φ16 | (Φ18) | Φ20 | ||
| d | min | 1.7 | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | |
| max | 1.84 | 2.34 | 2.84 | 3.38 | 3.88 | 4.48 | 5.48 | 6.62 | 8.62 | 10.77 | 13.27 | 15.27 | 17.27 | 19.33 | 21.33 | ||
| dc | max | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 16 | 20 | 24 | 28 | 30 | 34 | 37 | |
| min | 3.7 | 4.7 | 5.7 | 6.64 | 7.64 | 8.64 | 9.64 | 11.57 | 15.57 | 19.48 | 23.48 | 27.48 | 29.48 | 33.38 | 36.38 | ||
| h | Nominal Size | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.8 | 1 | 1.6 | 1.6 | 2 | 2.5 | 2.5 | 3 | 3 | 3 | |
| max | 0.35 | 0.35 | 0.55 | 0.55 | 0.55 | 0.9 | 1.1 | 1.8 | 1.8 | 2.2 | 2.7 | 2.7 | 3.3 | 3.3 | 3.3 | ||
| min | 0.25 | 0.25 | 0.45 | 0.45 | 0.45 | 0.7 | 0.9 | 1.4 | 1.4 | 1.8 | 2.3 | 2.3 | 2.7 | 2.7 | 2.7 | ||
| Nominal Diameter d | (Φ22) | Φ24 | (Φ27) | Φ30 | (Φ33) | Φ36 | (Φ39) | Φ42 | (Φ45) | Φ48 | (Φ52) | Φ56 | (Φ60) | Φ64 | |||
| d | min | 23 | 25 | 28 | 31 | 34 | 37 | 42 | 45 | 48 | 52 | 56 | 62 | 66 | 70 | ||
| max | 23.33 | 25.33 | 28.33 | 31.39 | 34.62 | 37.62 | 42.62 | 45.62 | 48.62 | 52.74 | 56.74 | 62.74 | 66.74 | 70.74 | |||
| dc | max | 39 | 44 | 50 | 56 | 60 | 66 | 72 | 78 | 85 | 92 | 98 | 105 | 110 | 115 | ||
| min | 38.38 | 43.38 | 49.38 | 55.26 | 58.8 | 64.8 | 70.8 | 76.8 | 83.6 | 90.6 | 96.6 | 103.6 | 108.6 | 113.6 | |||
| h | Nominal Size | 3 | 4 | 4 | 4 | 5 | 5 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | ||
| max | 3.3 | 4.3 | 4.3 | 4.3 | 5.6 | 5.6 | 6.6 | 9 | 9 | 9 | 9 | 11 | 11 | 11 | |||
| min | 2.7 | 3.7 | 3.7 | 3.7 | 4.4 | 4.4 | 5.4 | 7 | 7 | 7 | 7 | 9 | 9 | 9 | |||
