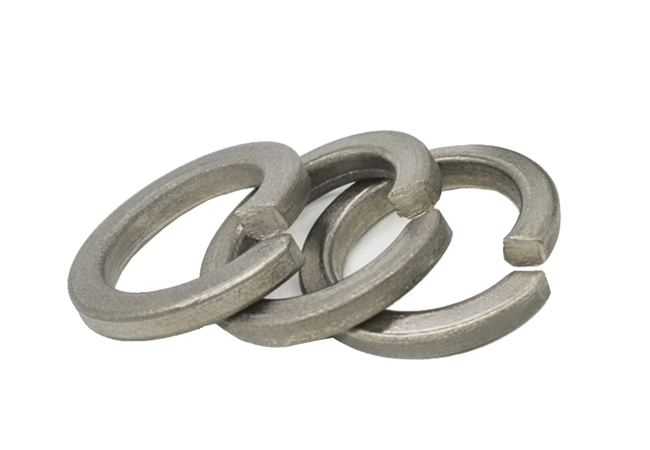

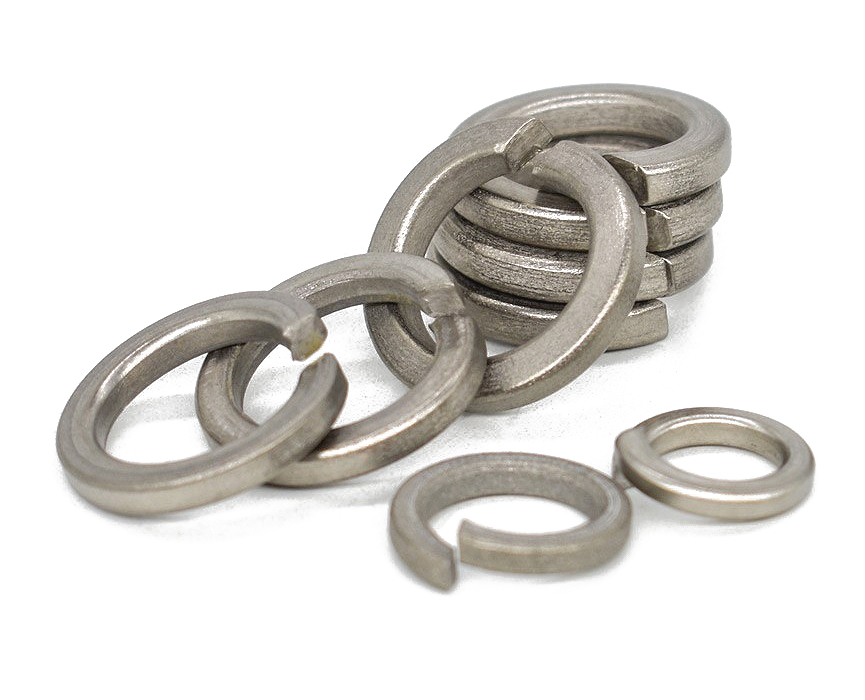

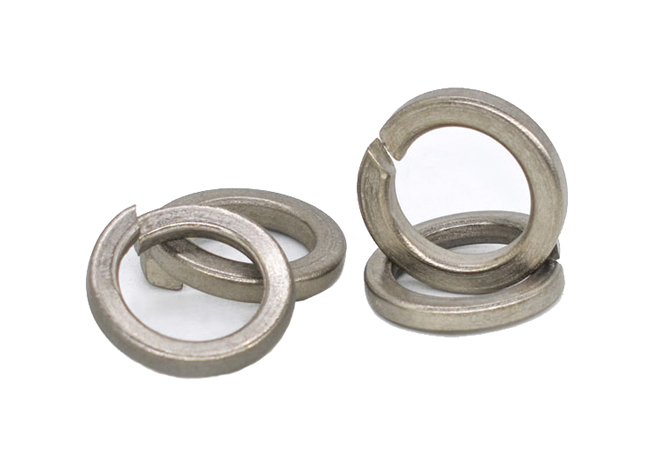

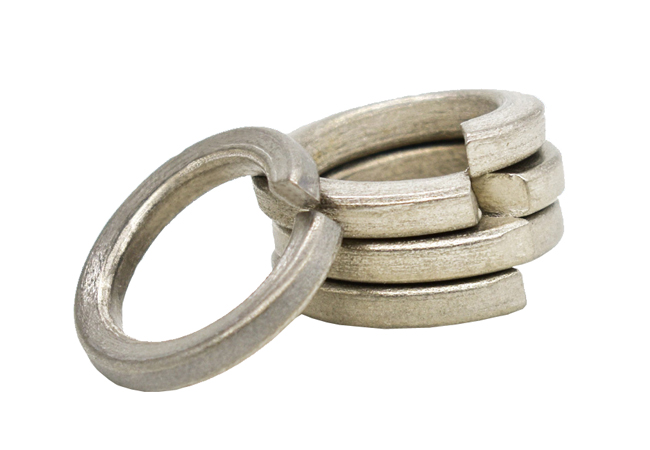

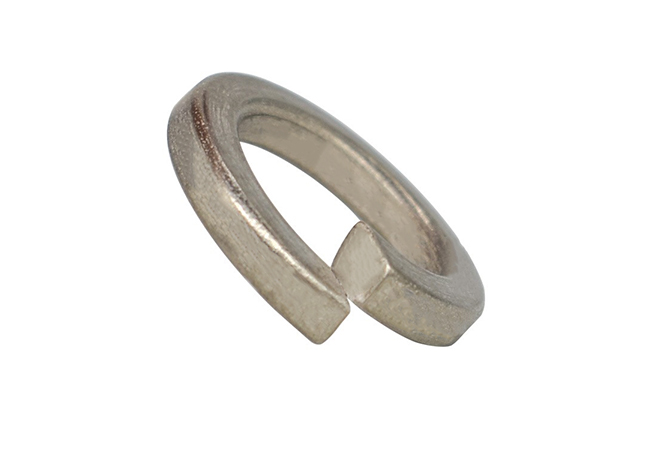

Ti Alloy Spring Washers

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Titanium Spring Lock Washer, Ti Alloy Plain Washer, helical spring lock washer

  • Surface:

    Plain Color, Bright.

  • Material:

    TA0,TA1,TA2 ,TC4（Ti-6Al-4V）,TB5

  • Size:

    Φ2-Φ100,2#-2,Custom-made

  • MOQ:

    According to size
inquiry now
product details

Titanium Alloy Spring washer is suitable for applications that require a combination of high strength to weight ratio and corrosion resistance

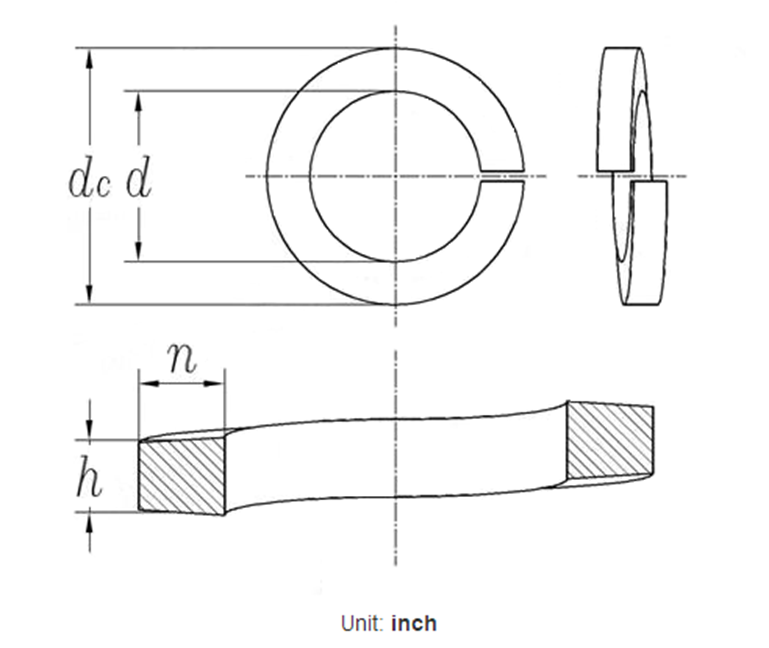

Screw Thread d 2# 3# 4# 5# 6# 8# 10# 12# 1/4 5/16 3/8 7/16 1/2 9/16 5/8
d Nominal Size 0.086 0.099 0.112 0.125 0.138 0.164 0.19 0.216 0.25 0.3125 0.375 0.4375 0.5 0.5625 0.625
max 0.094 0.107 0.12 0.133 0.148 0.174 0.2 0.227 0.26 0.322 0.385 0.45 0.512 0.574 0.641
min 0.088 0.101 0.114 0.127 0.141 0.167 0.193 0.22 0.252 0.314 0.377 0.44 0.502 0.564 0.628
dc max 0.172 0.195 0.209 0.236 0.25 0.293 0.334 0.377 0.487 0.583 0.68 0.776 0.869 0.965 1.073
h min 0.02 0.025 0.025 0.031 0.031 0.04 0.047 0.056 0.062 0.078 0.094 0.109 0.125 0.141 0.156
n min 0.035 0.04 0.04 0.047 0.047 0.055 0.062 0.07 0.109 0.125 0.141 0.156 0.171 0.188 0.203
Screw Thread d 3/4 7/8 1 1-1/8 1-1/4 1/3/8 1-1/2 1-5/8 1-3/4 1-7/8 2 2-1/4 2-1/2 2-3/4 3
d Nominal Size 0.75 0.875 1 1.125 1.25 1.375 1.5 1.625 1.75 1.875 2 2.25 2.5 2.75 3
max 0.766 0.894 1.024 1.153 1.28 1.408 1.534 1.663 1.789 1.914 2.039 2.293 2.543 2.793 3.043
min 0.753 0.878 1.003 1.129 1.254 1.379 1.504 1.633 1.758 1.883 2.008 2.262 2.512 2.762 3.012
dc max 1.265 1.459 1.656 1.847 2.036 2.219 2.419 2.553 2.679 2.811 2.936 3.221 3.471 3.824 4.074
h min 0.188 0.219 0.25 0.281 0.312 0.344 0.375 0.389 0.389 0.422 0.422 0.44 0.44 0.458 0.458
n min 0.234 0.266 0.297 0.328 0.359 0.391 0.422 0.424 0.424 0.427 0.427 0.442 0.442 0.491 0.491
