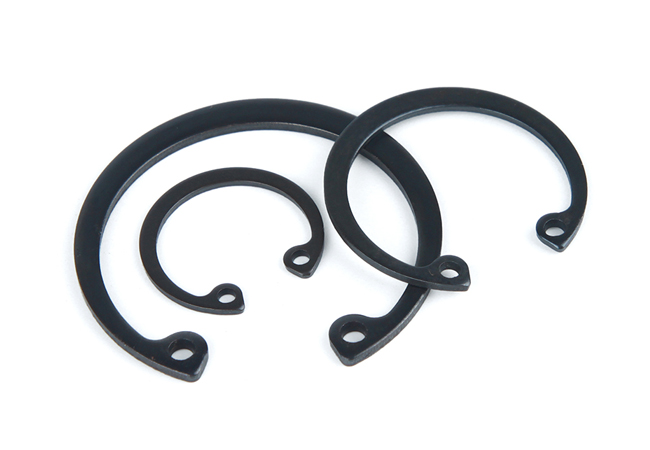

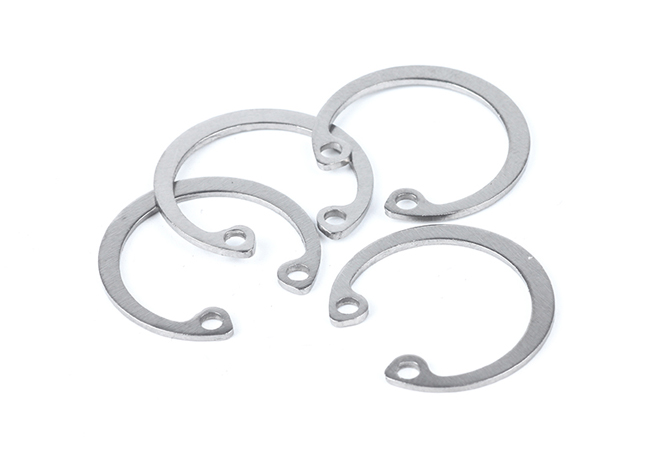

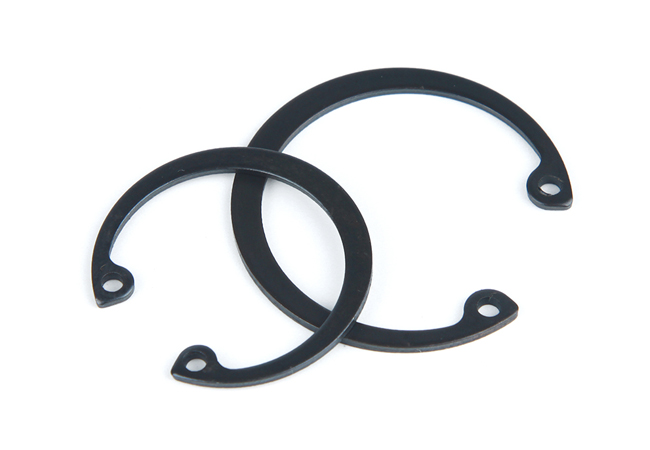

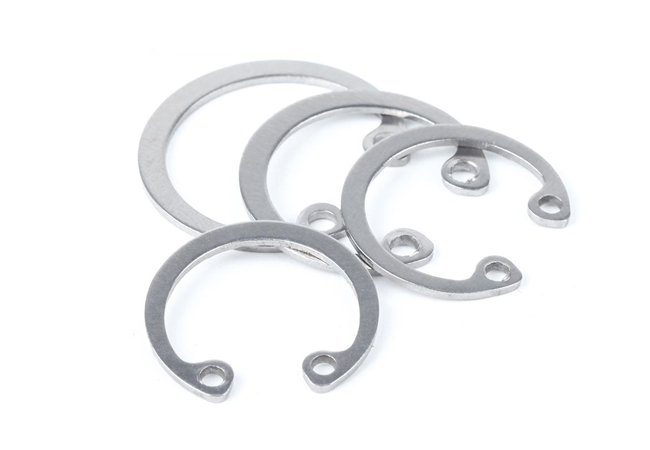

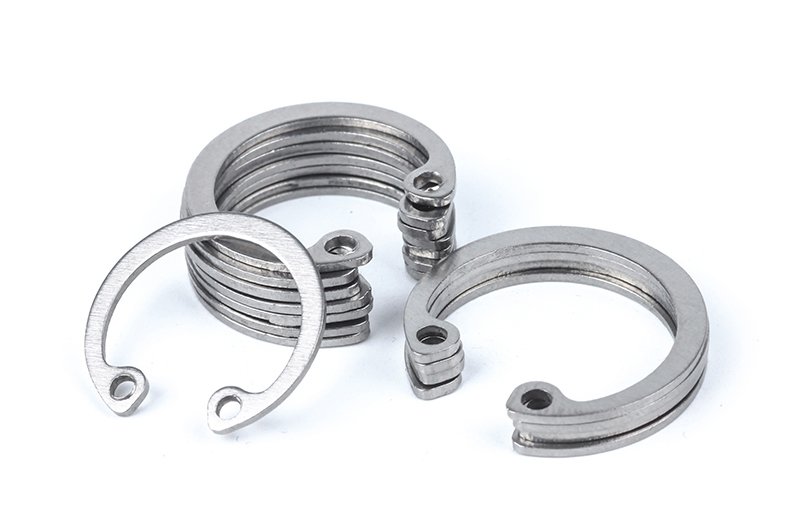

Retaining ring for bore

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    "E" Rings,Lock Washers,GB896,DIN6799,Q430,Q431

  • Surface:

    Polishing;Anodize;Nickel,Zinc,Black,Tin,chrome,Silver plating,Heat treatment Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    M8-M72,Custom-made

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now

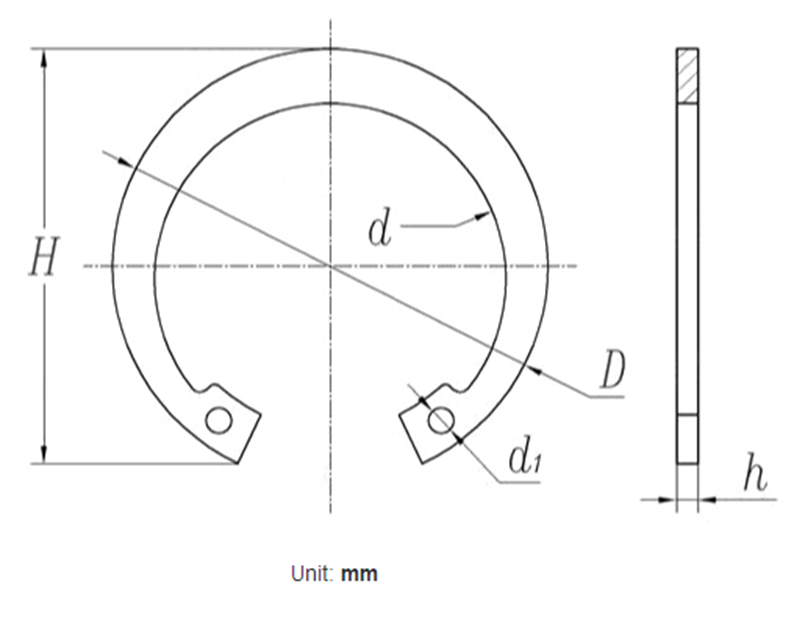

product details

Nominal Diameter d 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
H max 0.8 0.8 1 1 1 1 1 1 1 1 1 1 1 1 1
min 0.75 0.75 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94
d max 9.06 10.16 11.16 12.16 13.36 14.46 15.46 16.56 17.66 18.72 19.92 20.92 21.92 22.92 23.92
min 8.6 9.7 10.7 11.7 12.9 14 15 16.1 17.2 18.17 19.37 20.37 21.37 22.37 23.37
d1 min 1 1 1.2 1.2 1.5 1.5 1.7 1.7 1.7 1.7 2 2 2 2 2
Nominal Diameter d 24 25 26 28 30 31 32 34 35 36 37 38 40 42 45
H max 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.75 1.75 1.75
min 1.14 1.14 1.14 1.14 1.14 1.14 1.14 1.44 1.44 1.44 1.44 1.44 1.69 1.69 1.69
d max 26.32 27.32 28.32 30.6 32.6 33.9 34.9 37 38.3 39.3 40.3 41.3 44.4 46.4 49.4
min 25.69 26.69 27.69 29.85 31.85 33.15 34.15 36.25 37.55 38.55 39.55 40.55 43.11 45.11 48.11
d1 min 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Nominal Diameter d 47 48 50 52 55 56 58 60 62 63 65 68 70 72 75
H max 1.75 1.75 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5
min 1.69 1.69 1.93 1.93 1.93 1.93 1.93 1.93 1.93 1.93 2.43 2.43 2.43 2.43 2.43
d max 51.6 52.6 55.3 57.3 60.3 61.3 63.3 65.3 67.3 68.3 70.3 73.6 75.6 77.6 80.3
min 50.04 51.04 53.74 55.74 58.74 59.74 61.74 63.74 65.74 66.74 68.74 72.04 74.04 76.04 79.04
d1 min 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3
