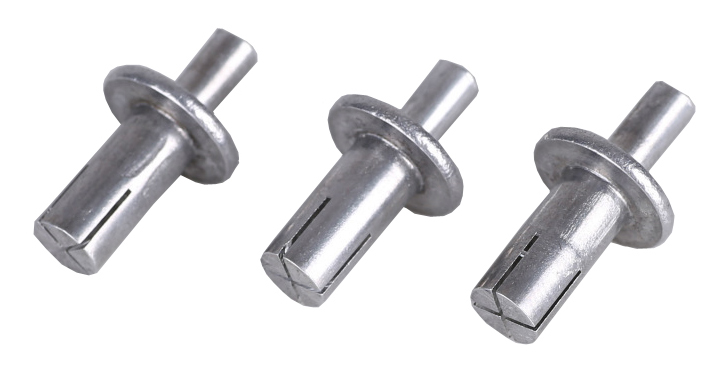

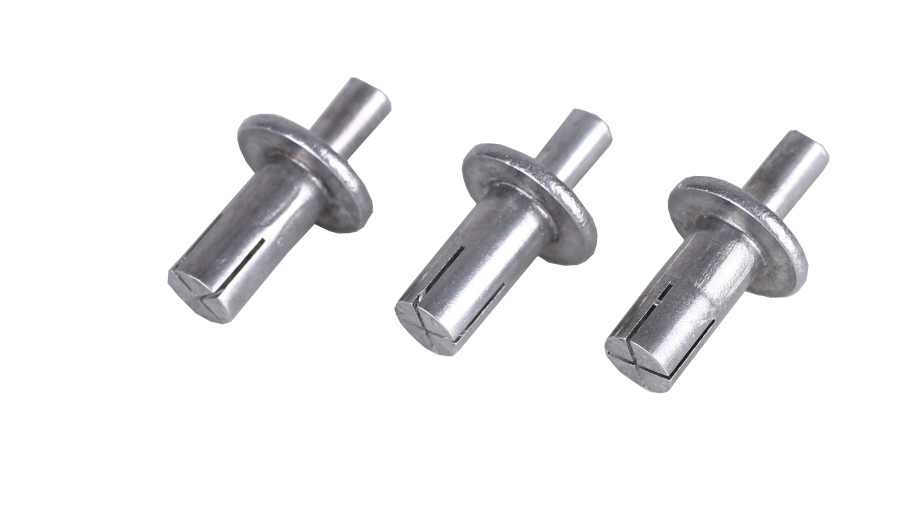

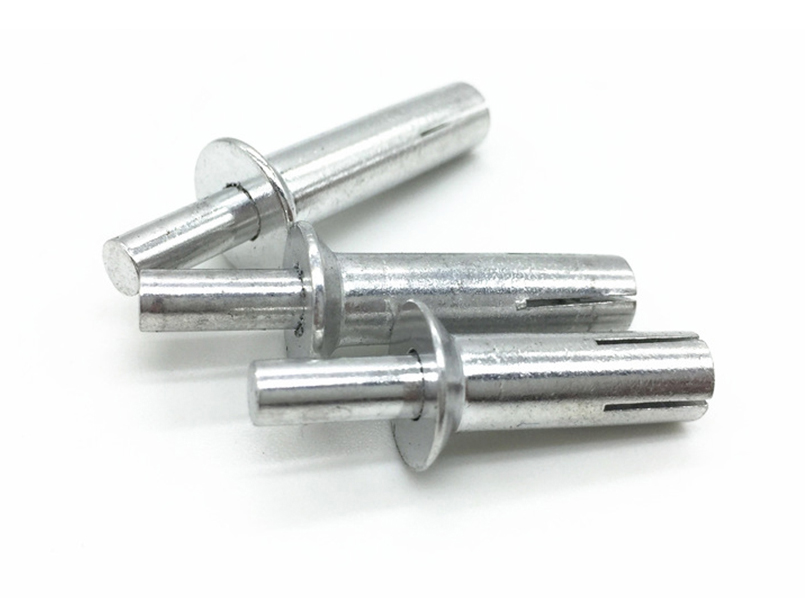

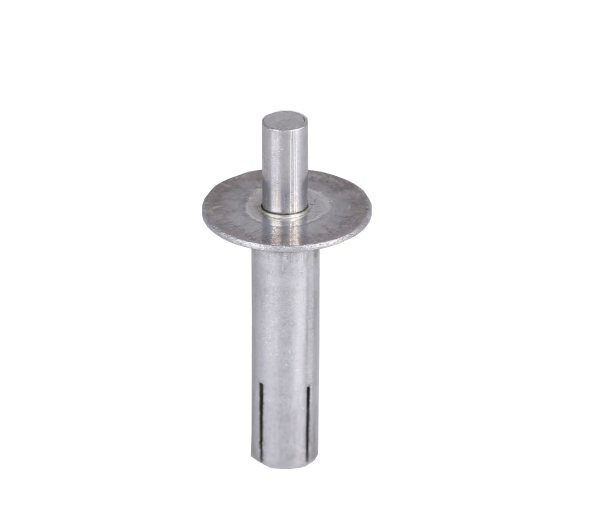

• Aluminum drive pin
• For blind or through-fastening of metal to metal or for expansion in low-density materials like wood.
1. Drill hole and insert rivet.
2. Drive rivet pin down with hammer.
3. Automatic expansion and pull-up action assures a tight joint.

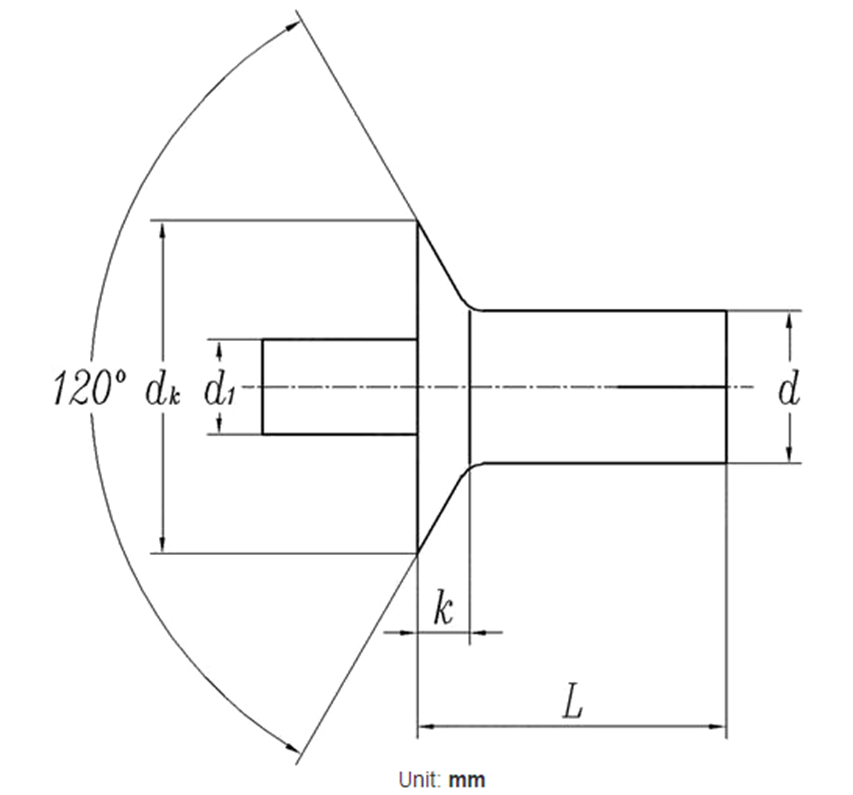

| Nominal Diameter d | 3 | 4 | 5 | 6 | 6.4 | |||||
| d | max | 3.06 | 4.08 | 5.08 | 6.08 | 6.48 | ||||
| min | 2.94 | 3.92 | 4.92 | 5.92 | 6.32 | |||||
| dk | max | 6.24 | 8.29 | 9.89 | 12.35 | 13.29 | ||||
| min | 5.76 | 7.71 | 9.31 | 11.65 | 12.71 | |||||
| k | ≈ | 1.4 | 1.7 | 2 | 2.4 | 3 | ||||
| d1 | Ref. | 1.8 | 2.18 | 2.8 | 3.6 | 3.8 | ||||
