Welded thread rods

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    DIN32501, ISO13918 Threaded Welding Stud

  • Surface:

    Plain color, Nickel coated, yellow zinc, galvanized

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M3-M10,#6-32-1/2-13,Custom-made

  • MOQ:

    According to size
inquiry now
product details

Thread welding studs are used for short weld cycles and are commonly used for mild steel, stainless steel and aluminum applications.Also Welding stud can be end-joined to a metal work piece instantaneously for a high quality, high strength permanent bond.

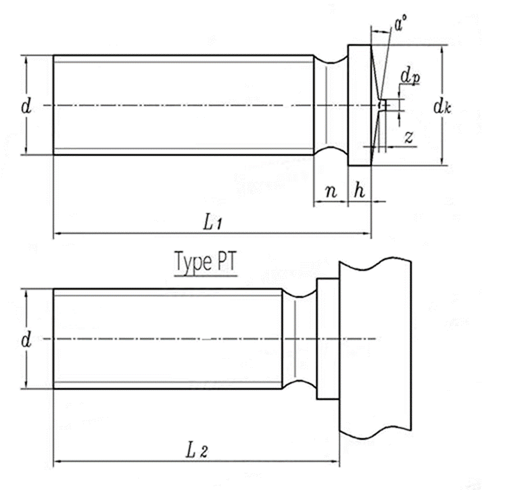

Nominal Diameter d M3 M4 M5 M6 M8
P Pitch 0.5 0.7 0.8 1 1.25
dk max 4.7 5.7 6.7 7.7 9.2
min 4.3 5.3 6.3 7.3 8.8
dp max 0.68 0.73 0.83 0.83 0.83
min 0.52 0.57 0.67 0.67 0.67
z max 0.6 0.6 0.85 0.85 0.9
min 0.5 0.5 0.75 0.75 0.8
h 0.7~1.4 0.7~1.4 0.8~1.4 0.8~1.4 0.8~1.4
n max 1.5 1.5 2 2 3

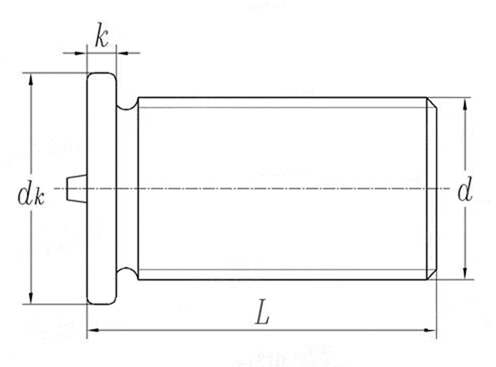

Screw Thread d #6-32 #8-32 #10-24 37001 5/16-18 3/8-16 1/2-13
dk max 0.189 0.227 0.268 0.307 0.386 0.465 0.543
min 0.165 0.203 0.244 0.283 0.362 0.442 0.519
k max 0.043 0.043 0.047 0.047 0.051 0.051 0.051
min 0.027 0.027 0.031 0.031 0.035 0.035 0.035
