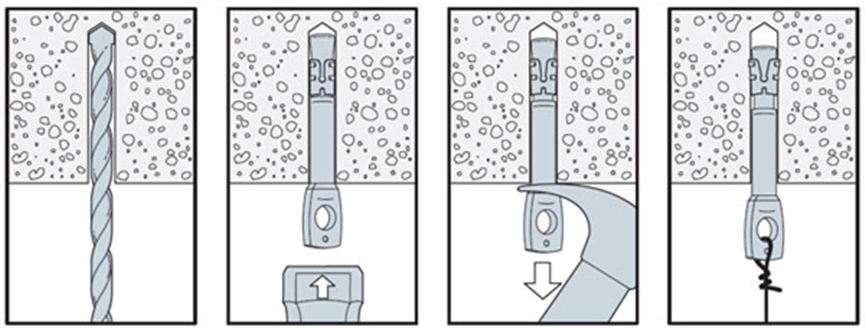

Drill a hole into concrete or other hard surfaces, and hammer in these hangers. Once the hanger is inserted, pulling on the head with the claw of a hammer will cause the base to expand, wedging the hanger in place.

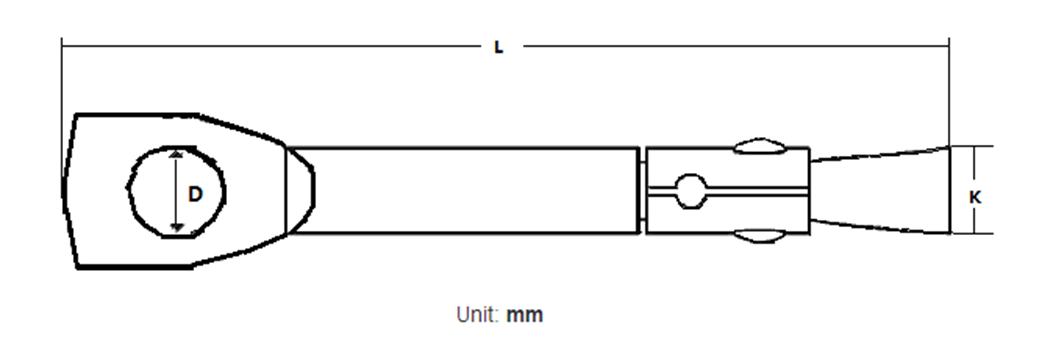

| Screw Thread d | 6 | 6 | 6 | 6 | 6.5 | 6.5 | ||||||
| D | 6.1 | 6.1 | 6.1 | 6.1 | 7.1 | 7.1 | ||||||
| L | 40 | 50 | 55 | 60 | 2-1/4'' | 2'' | ||||||
| Min Embedment | 30 | 30 | 30 | 35 | 35 | 30 | ||||||
| Pul Out Load In concrete(kgf) | 480 | 480 | 480 | 550 | 550 | 550 | ||||||
