Frame anchor

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

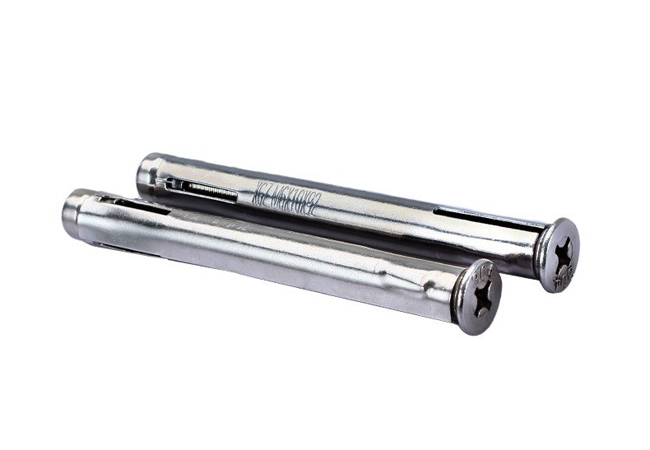

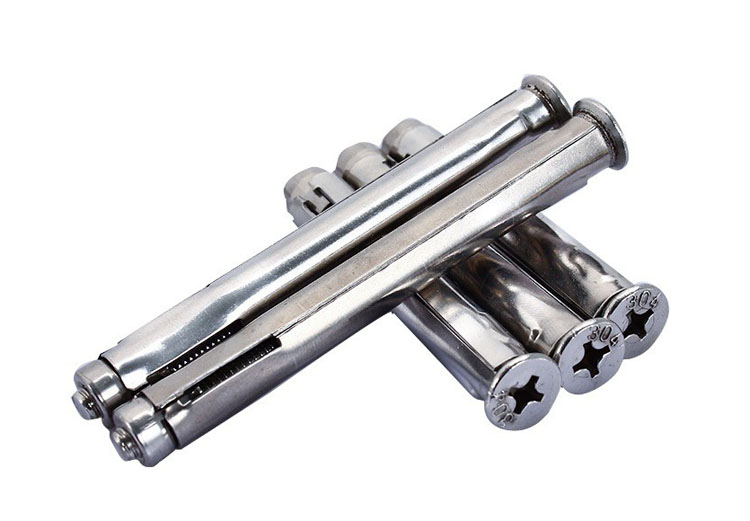

    Flat Head Removable-Bolt Anchors,sleeve anchor

  • Surface:

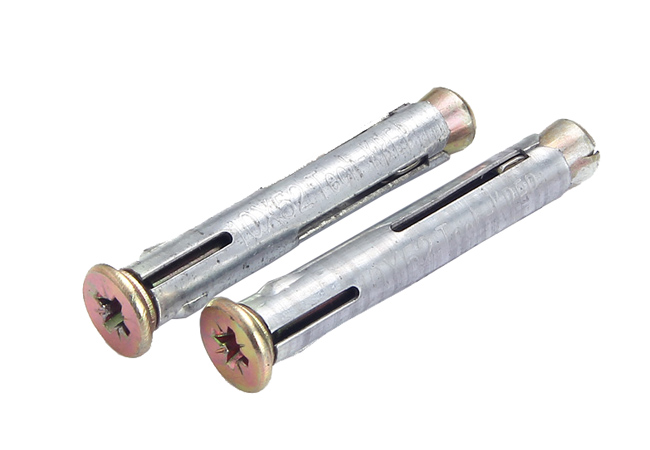

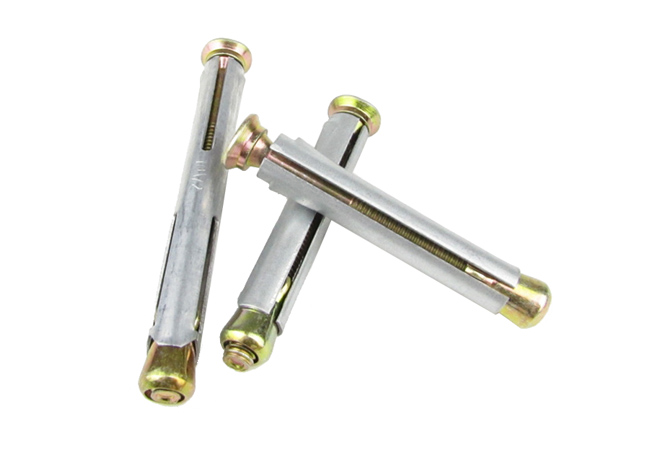

    Black oxide,Nickel, possivation,Tin, Zinc Clear, Zinc Yellow, Zinc black

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M8-M10,Custom-made

  • MOQ:

    According to size
inquiry now
product details

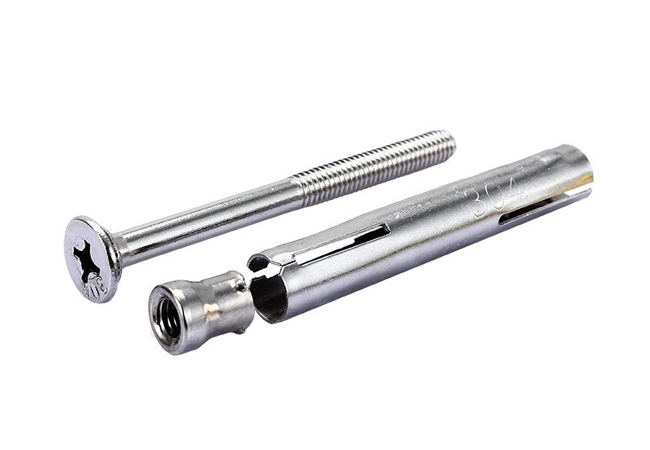

The removable flat head provides a flush finish in countersunk holes. Also known as sleeve anchors, these have a sleeve that expands as you tighten the bolt for a secure hold in block and brick. They're often used to mount shelving and anchor bollards and guard rails.

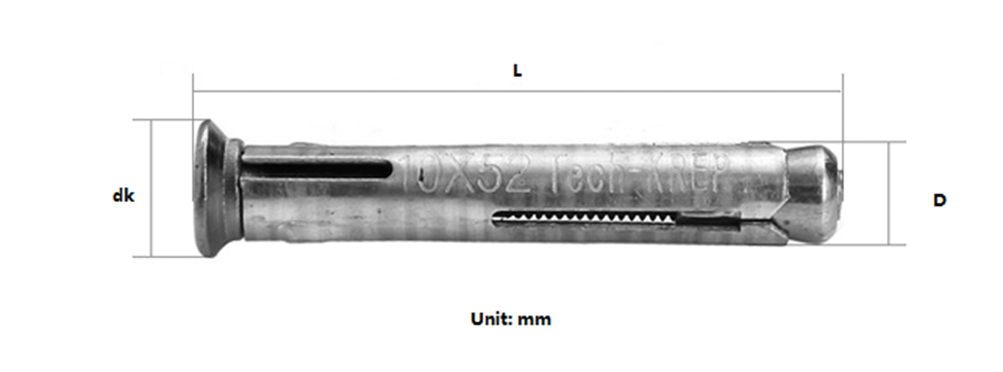

Size M8*72 M8*92 M8*112 M8*132 M8*152 M8*172 M10*52
D 8 8 8 8 8 8 10
L 82 100 120 142 162 182 62
dk 10.5 10.5 10.5 10.5 10.5 10.5 10.5
Bit size 8 8 8 8 8 8 8
Size M10*72 M10*92 M10*112 M10*132 M10*152 M10*182 M10*202
D 10 10 10 10 10 10 10
L 82 102 122 142 162 190 212
dk 13 13 13 13 13 13 13
Bit size 10 10 10 10 10 10 10
