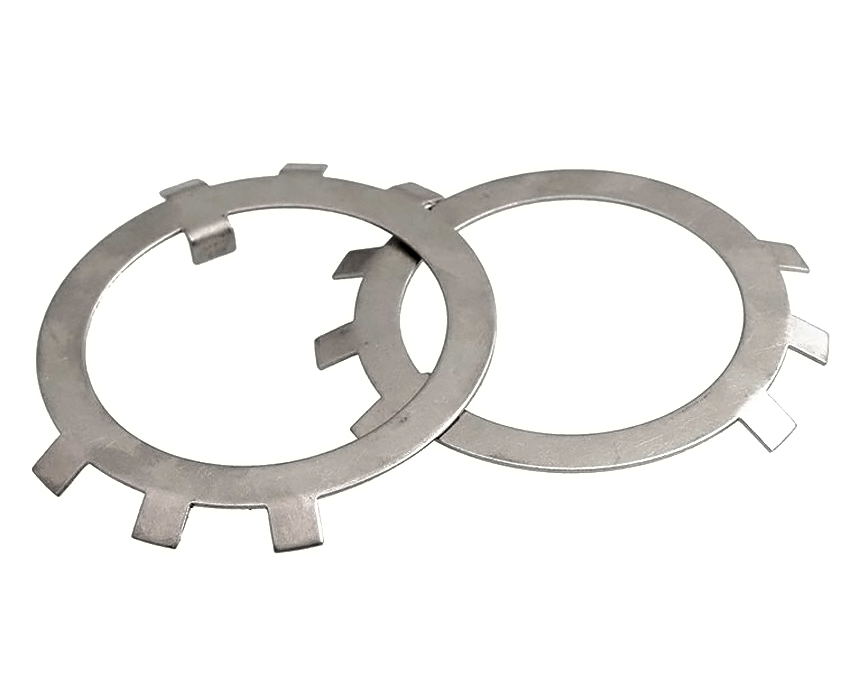

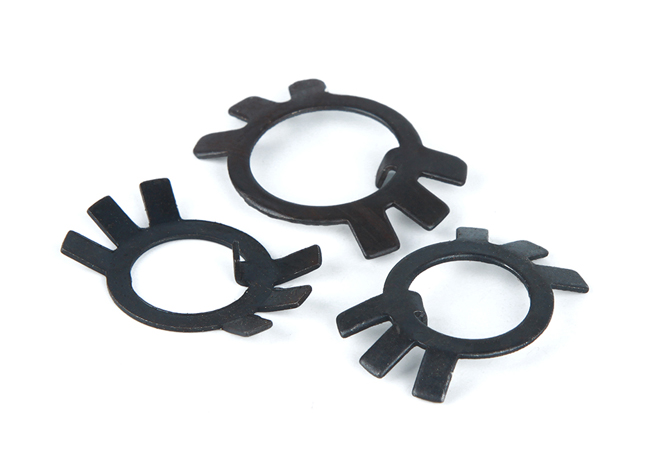

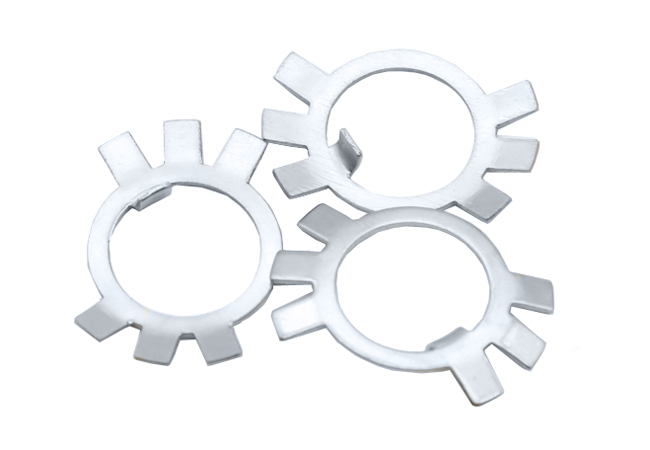

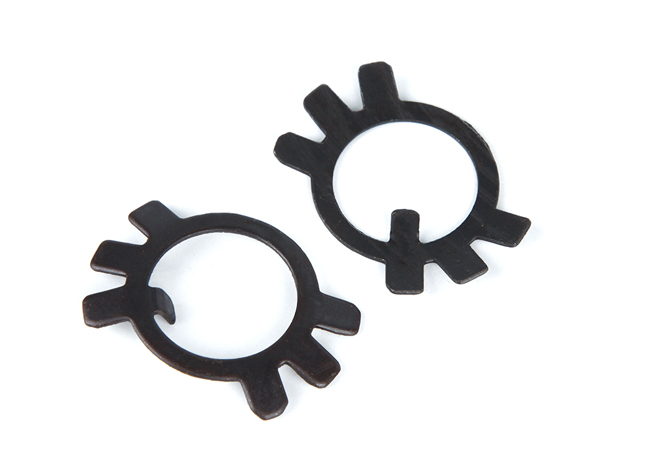

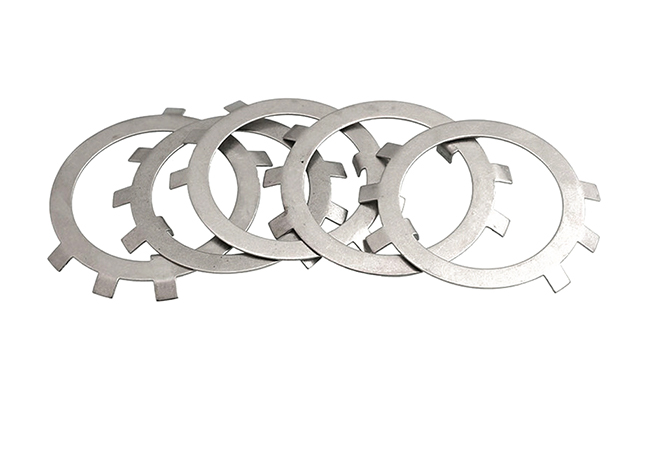

Tab washers for round nut

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    DIN 70952, Q 408 Tab washers for round nuts

  • Surface:

    Black, Plain Color,Galvanized, etc.

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    10-200,Custom-made

  • MOQ:

    According to size
inquiry now
product details

This type of washer lock a part in place and are most often used in applications where there are drastic heat or heavy vibrations, And normally used to distribute loads of threaded bolts, screws and nuts evenly as the fasteners in tightened.

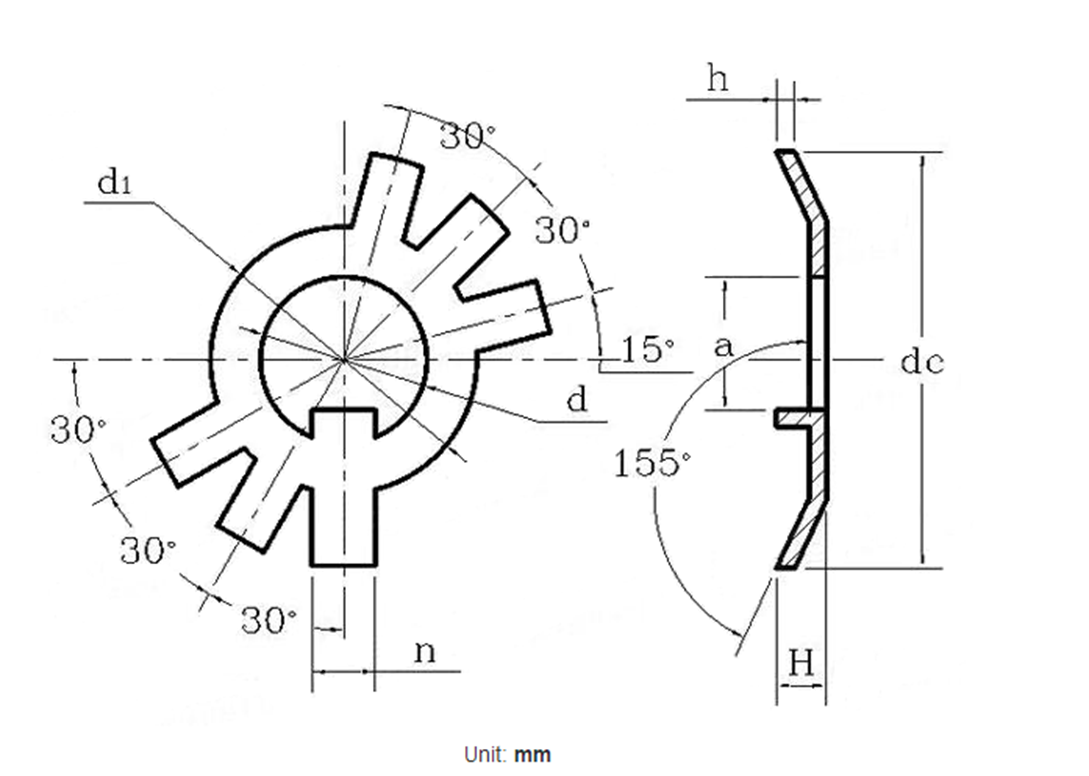

Size 10 12 14 16 18 20 22 24 25 ① 27 30 33 35 ① 36 39 40 ①
d 10.5 12.5 14.5 15.5 18.5 20.5 22.5 24.5 25.5 27.5 30.5 33.5 35.5 36.5 39.5 40.5
dc 25 28 32 34 35 38 42 45 45 48 52 56 56 60 62 62
d1 16 19 20 22 24 27 30 34 34 37 40 43 43 46 49 49
h 1 1 1 1 1 1 1 1 1 1 1 1.5 1.5 1.5 1.5 1.5
H 3 3 3 3 4 4 4 4 4 5 5 5 5 5 5 5
n 3.8 3.8 3.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 5.7 5.7 5.7 5.7 5.7
a 8 9 11 13 15 17 19 21 22 24 27 30 32 33 36 37
per 1000 units ≈ kg 1.91 2.3 2.5 2.99 3.04 3.5 4.14 5.01 4.7 5.4 5.87 10.01 8.75 10.76 11.06 10.33
Size 42 45 48 50 ① 52 55 ① 56 60 64 65 ① 68 72 75 ① 76 80 85
d 42.5 45.5 48.5 50.5 52.5 56 57 61 65 66 69 73 76 77 81 86
dc 66 72 76 76 82 82 90 94 100 100 105 110 110 115 120 125
d1 53 59 61 61 67 67 74 79 84 84 88 93 93 98 103 108
h 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
H 5 5 5 5 6 6 6 6 6 6 6 7 7 7 7 7
n 5.7 5.7 7.7 7.7 7.7 7.7 7.7 7.7 7.7 7.7 9.6 9.6 9.6 9.6 9.6 9.6
a 39 42 45 47 49 52 53 57 61 62 65 69 71 72 76 81
per 1000 units ≈ kg 12.55 16.3 17.68 15.85 21.12 17.67 26 28.4 31.55 30.35 34.69 37.9 33.9 41.27 44.7 46.72
Size 90 95 100 105 110 115 120 125 130 140 150 160 170 180 190 200
d 91 96 101 106 111 116 121 126 131 141 151 161 171 181 191 201
dc 130 135 140 145 156 160 166 170 176 186 206 216 226 236 246 256
d1 112 117 122 127 135 140 145 150 155 165 180 190 200 210 220 230
h 2 2 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5
H 7 7 7 7 7 7 7 7 7 7 7 8 8 8 8 8
n 11.6 11.6 11.6 11.6 13.5 13.5 13.5 13.5 13.5 13.5 15.5 15.5 15.5 15.5 15.5 15.5
a 86 91 96 101 106 111 116 121 126 136 146 156 166 176 186 196
per 1000 units ≈ kg 64.82 67.4 69.97 72.54 89.08 91.33 94.96 97.21 100.8 106.7 175.9 185.1 194 202.9 211.7 220.6
