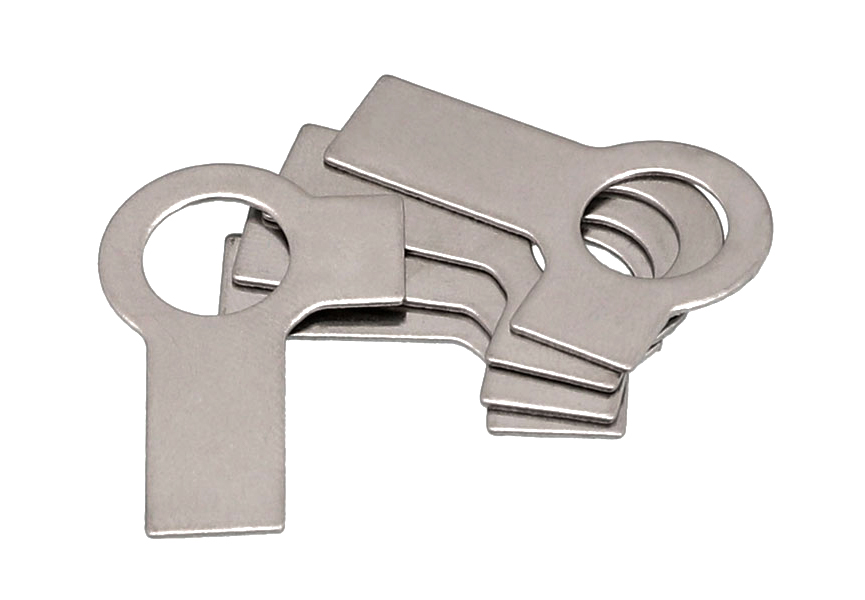

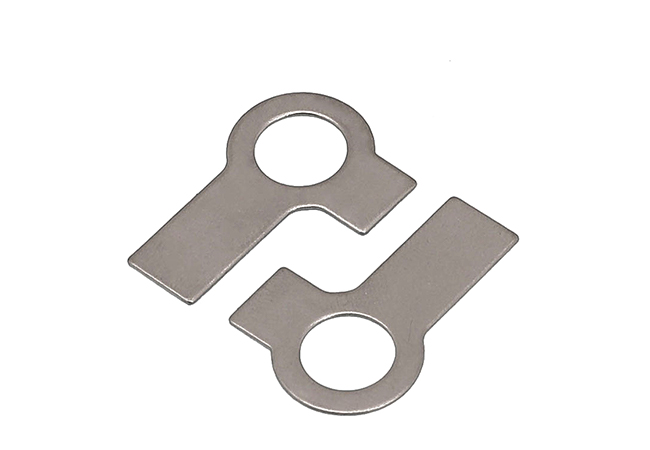

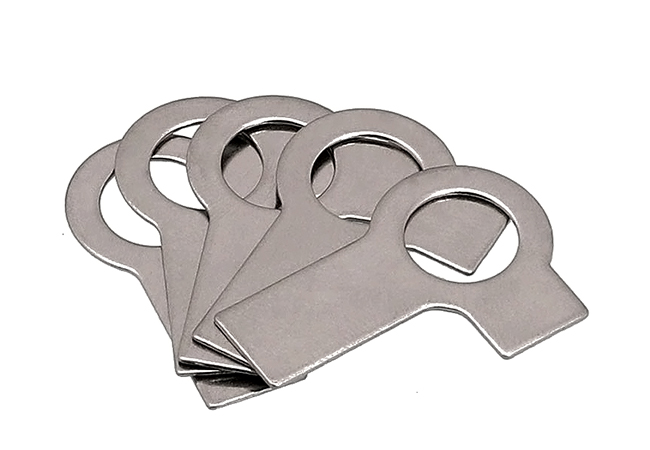

Tab washers with long tab and wing

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    DIN 463 Tab Washers With Long And Short Tap At Right Angles

  • Surface:

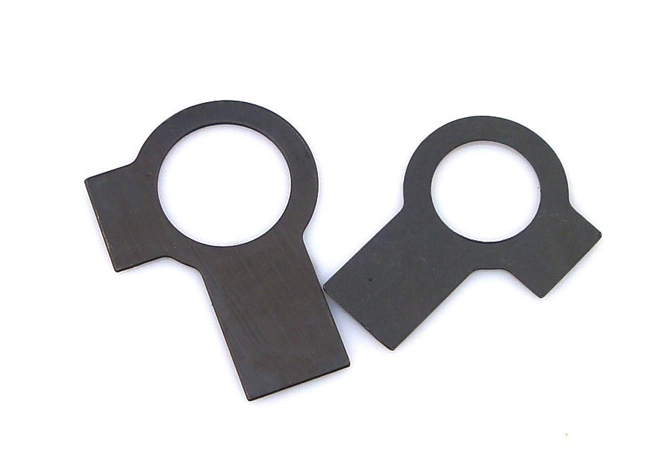

    Black, Plain Color,Galvanized, etc.

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    3.2-54,Custom-made

  • MOQ:

    According to size
inquiry now
product details

This washers designed to prevent both the fastener and washer from turning and loosening in high-vibration applications

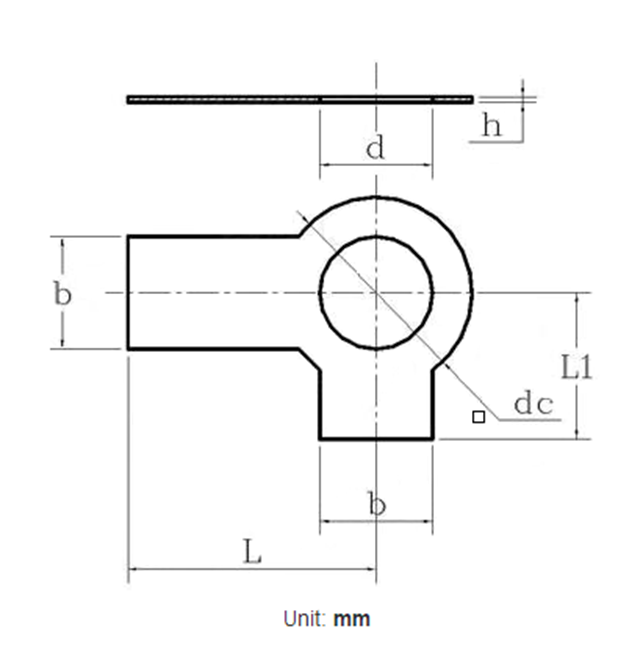

Screw Thread d M3 M3.5 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18
d 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19
b 4 4 5 6 7 7 8 10 12 12 15 18
dc 7 8 9 10 12.5 14 17 21 24 28 30 34
L 13 13 14 16 18 18 20 22 28 28 32 36
L1 5 5.5 6.5 8 9 10 11 13 15 16 18 20
h 0.38 0.38 0.38 0.5 0.5 0.5 0.75 0.75 1 1 1 1
per 1000 units ≈ kg 0.229 0.251 0.327 0.55 0.8 0.9 1.71 2.51 4.41 5.09 6.3 8.24
Screw Thread d M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52
d 21 23 25 28 31 34 37 40 43 46 50 54
b 18 20 20 23 26 28 30 32 35 38 40 44
dc 37 39 44 50 56 60 66 72 78 85 92 98
L 36 42 42 48 52 56 60 64 70 75 80 85
L1 21 23 25 29 32 34 38 41 44 48 50 53
h 1 1 1 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
per 1000 units ≈ kg 9 10 12 25.3 31.4 35.6 42.5 49.7 59.2 70.3 80 90.2
