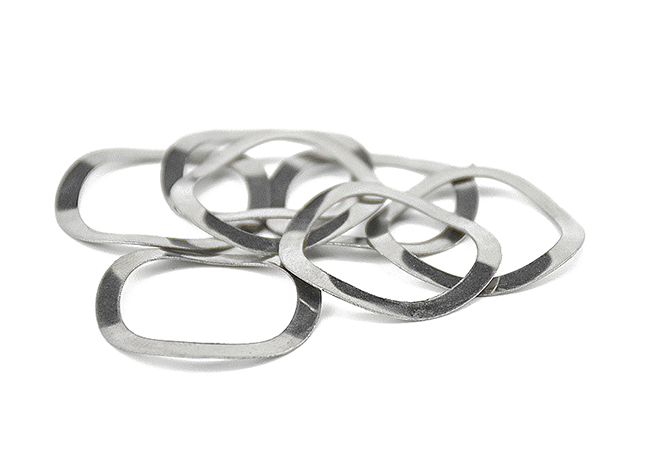

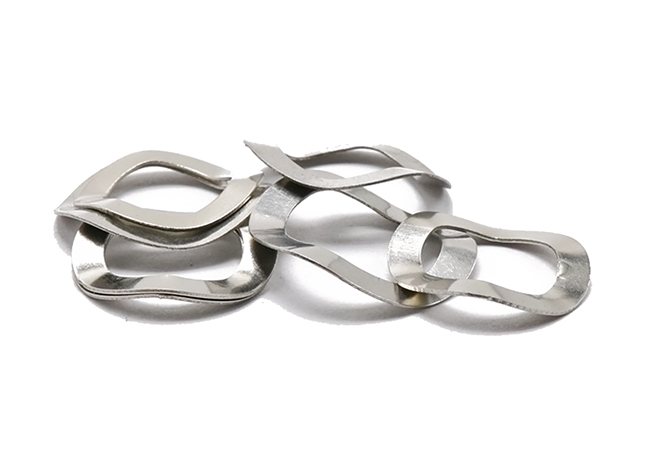

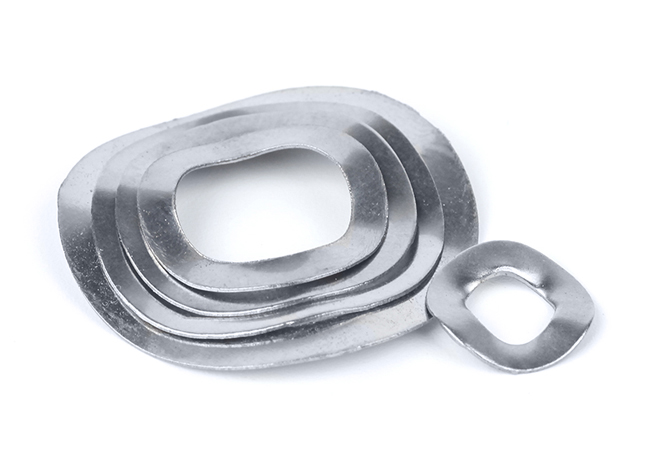

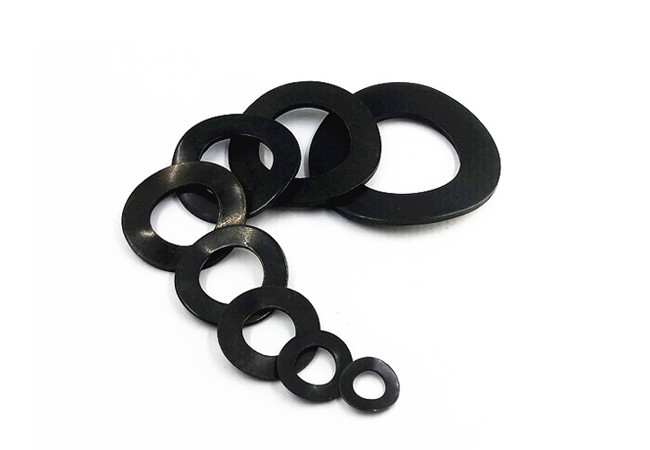

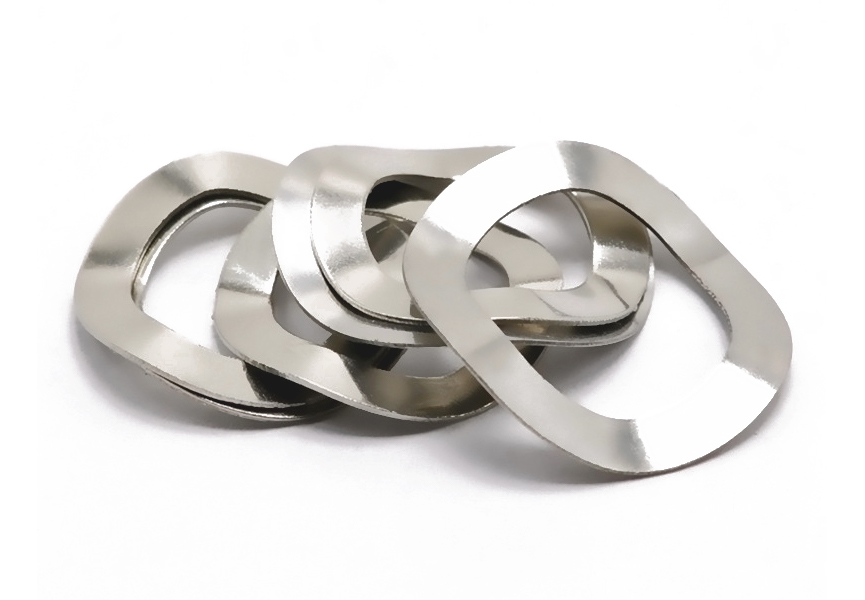

Wave Spring washers feature an irregular, wavy shape that helps to resist loosening and distribute pressure in low strength fastening. Choose from steel, spring steel and stainless steel wave washers in a wide range of dimensions to fit different bolt sizes. Also it is flexable, cushioning, and noise reduction, and may help for variations in tolerance.

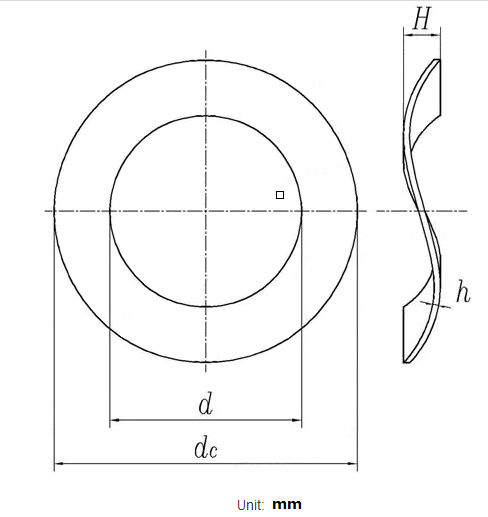

| Size | D16 | D19 | D22 | D26 | D28 | D30 | D32 | D35 | D40 | D42 | D47 | D52 | D62 | D72 | D80 | D85 | |
| dc | Nominal Size | 15.4 | 18.6 | 21.4 | 25 | 27.2 | 29 | 31.4 | 34 | 38.6 | 40.6 | 45.5 | 50.5 | 60.2 | 69.1 | 78 | 83.1 |
| max | 15.8 | 19 | 21.8 | 25.4 | 27.6 | 29.6 | 32 | 34.6 | 39.2 | 41.2 | 46.1 | 51.1 | 60.8 | 69.9 | 78.8 | 83.9 | |
| min | 15 | 18.2 | 21 | 24.6 | 26.8 | 28.4 | 30.8 | 33.4 | 38 | 40 | 44.9 | 49.6 | 59.6 | 68.3 | 77.2 | 82.3 | |
| d | Nominal Size | 11.7 | 14.7 | 15.3 | 18.7 | 20.8 | 22.6 | 26.6 | 27.8 | 32.8 | 34.1 | 38.4 | 41 | 50.2 | 59.1 | 70 | 73.1 |
| max | 12.1 | 15.1 | 15.7 | 19.1 | 21.2 | 23.2 | 27.2 | 28.4 | 33.4 | 34.7 | 39 | 41.6 | 50.8 | 59.9 | 70.8 | 73.9 | |
| min | 11.3 | 14.3 | 14.9 | 18.3 | 20.4 | 22 | 26 | 27.2 | 32.2 | 33.5 | 37.8 | 40.4 | 49.6 | 58.3 | 69.2 | 72.3 | |
| H | 2 | 2.7 | 3 | 4 | 4.1 | 3.1 | 4 | 4.3 | 3.2 | 3.3 | 4 | 3.2 | 3.9 | 5.5 | 3.9 | 4 | |
| h | Thickness | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 |
| n | Waveform number | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 |
| Size | D90 | D100 | D110 | D120 | D125 | D130 | D140 | D150 | D160 | D170 | D180 | D190 | D200 | D215 | D240 | ||
| dc | Nominal Size | 87.6 | 97 | 107.3 | 116.4 | 120.8 | 128.5 | 138.5 | 148.8 | 159.1 | 169 | 179.1 | 187.5 | 197.5 | 212 | 237 | |
| max | 88.4 | 97.8 | 108.1 | 117.2 | 121.6 | 129.3 | 139.5 | 149.8 | 160.1 | 170 | 180.1 | 188.7 | 198.7 | 213.2 | 238.2 | ||
| min | 86.8 | 96.2 | 106.5 | 115.6 | 120 | 127.7 | 137.5 | 147.8 | 158.1 | 168 | 178.1 | 186.3 | 196.3 | 210.8 | 235.8 | ||
| d | Nominal Size | 78.1 | 87.5 | 97.6 | 107 | 111.6 | 109.5 | 119.8 | 125.4 | 137.1 | 142 | 145.1 | 154.5 | 166.5 | 182 | 204 | |
| max | 78.9 | 88.3 | 98.4 | 107.8 | 112.4 | 110.3 | 120.8 | 126.4 | 138.1 | 143 | 146.1 | 155.7 | 167.7 | 183.2 | 205.2 | ||
| min | 77.3 | 86.7 | 96.8 | 106.2 | 110.8 | 108.7 | 118.8 | 124.4 | 136.1 | 141 | 144.1 | 153.3 | 165.3 | 180.8 | 202.8 | ||
| H | 4.5 | 5.6 | 4.6 | 5.8 | 5.9 | 4.8 | 4.6 | 4.6 | 4.5 | 4.3 | 4.8 | 5 | 5.5 | 7 | 7.5 | ||
| h | Thickness | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.9 | 0.9 | 1 | 1 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | |
| n | Waveform number | 6 | 6 | 7 | 7 | 7 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
