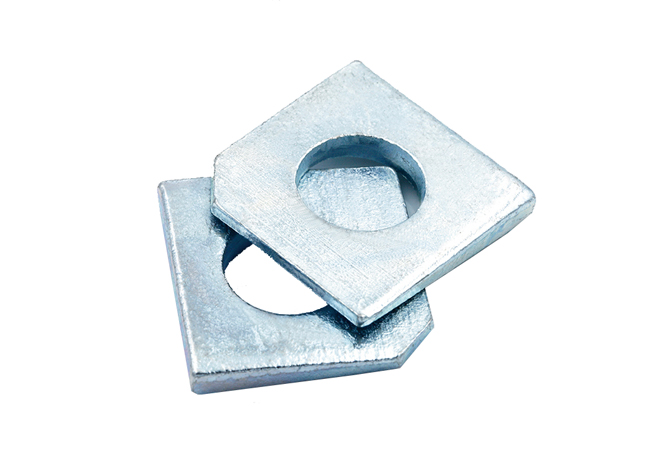

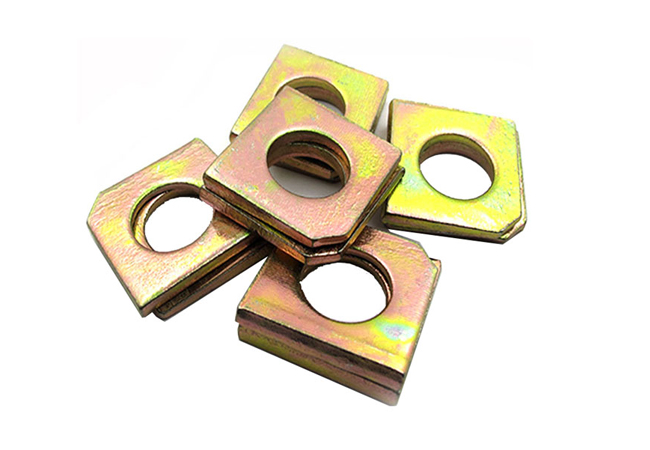

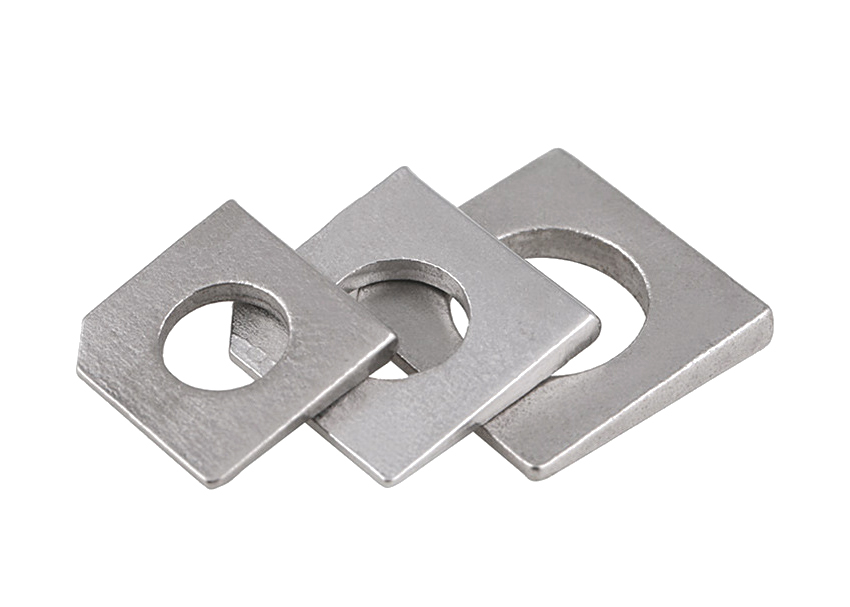

Square taper washers for slot section

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Beveled Washers, Square Taper Washer

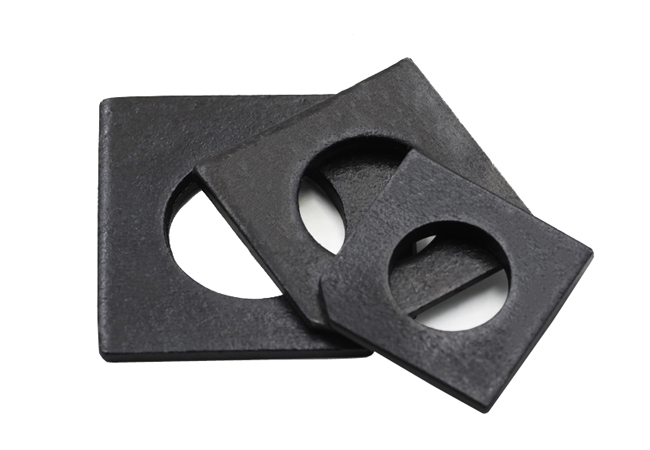

  • Surface:

    Plain color, galvanized, black oxied coating, HDG, Dacromet finish etc.

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    6-36,Custom-made

  • MOQ:

    According to size
inquiry now
product details

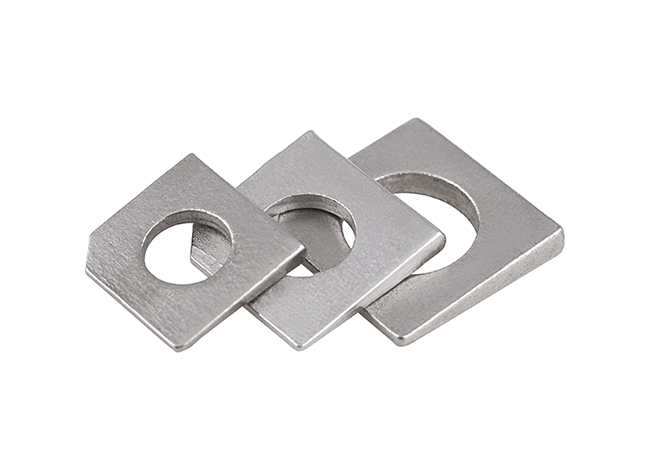

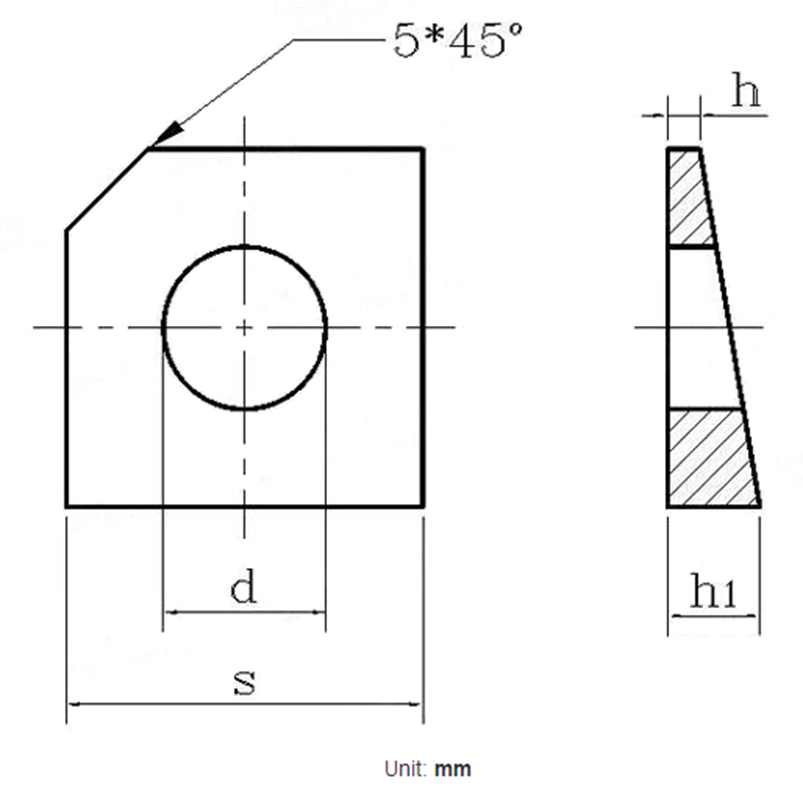

Standard-- bs 4395-1, GB853 , JB /ZQ 4338 The washer designed for protect the bolt when there is only one side force and reduce the pressure from the channel steel

Screw Thread d M6 M8 M10 M12 M16 (M18) M20 (M22) M24 (M27) M30 M36
d max 6.96 9.36 11.43 13.93 17.93 20.52 22.52 24.52 26.52 30.52 33.62 39.62
min 6.6 9 11 13.5 17.5 20 22 24 26 30 33 39
s 16 18 22 28 35 40 40 40 50 50 60 70
h 2 2 2 2 2 3 3 3 3 3 3 3
h1 3.6 3.8 4.2 4.8 5.4 7 7 7 8 8 9 10
per 1000 units ≈ kg 4.75 5.79 9.31 16.9 28.22 50 47.43 44.61 84.33 76.78 128.3 187.7
