home Products Eye nut

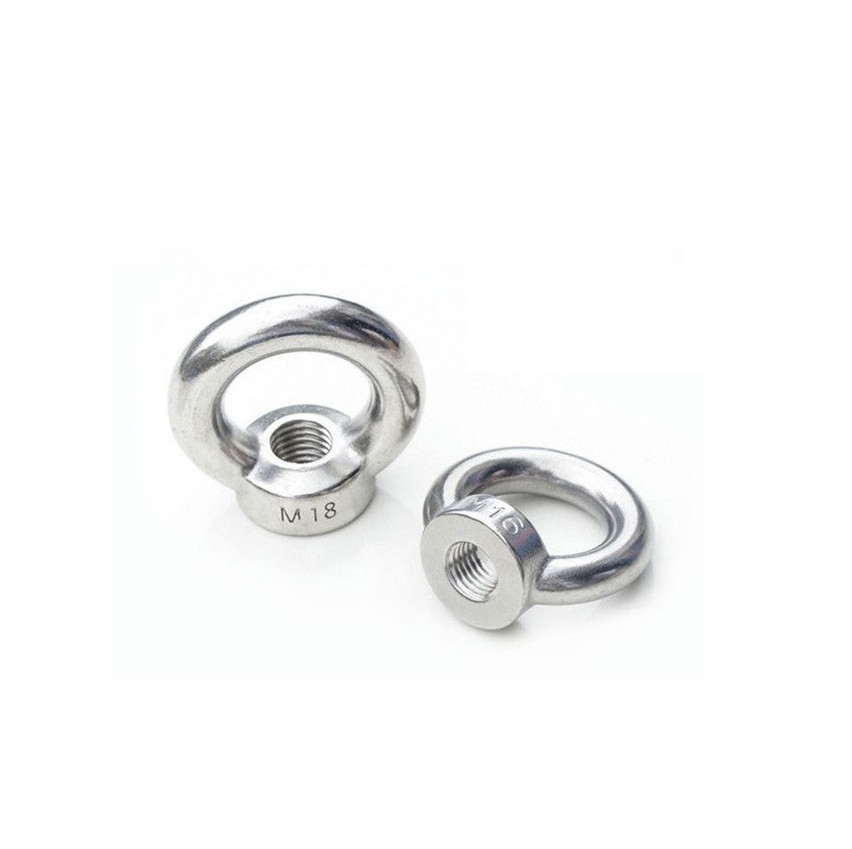

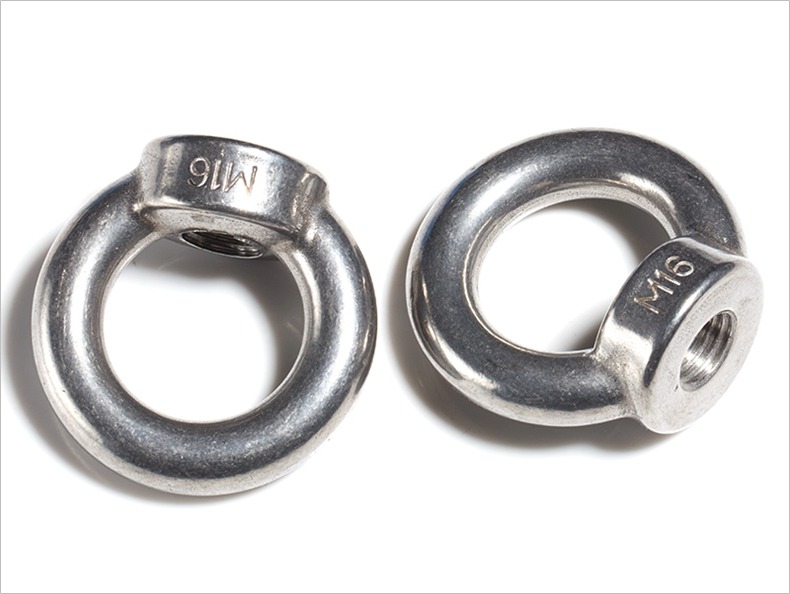

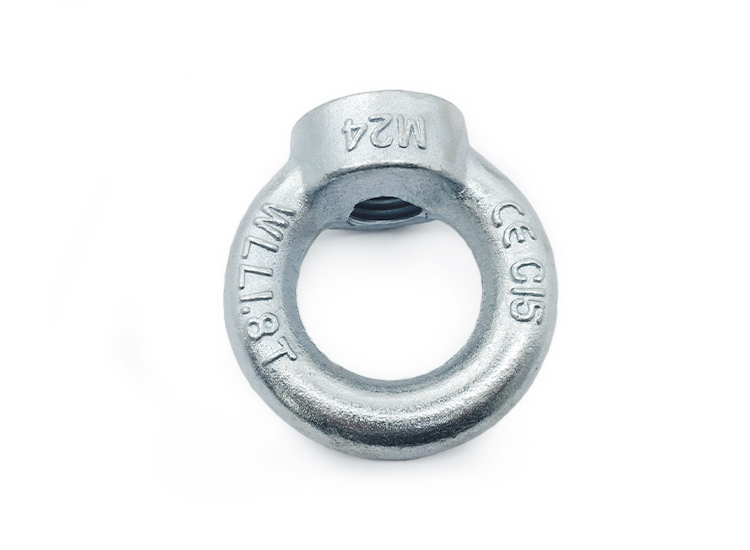

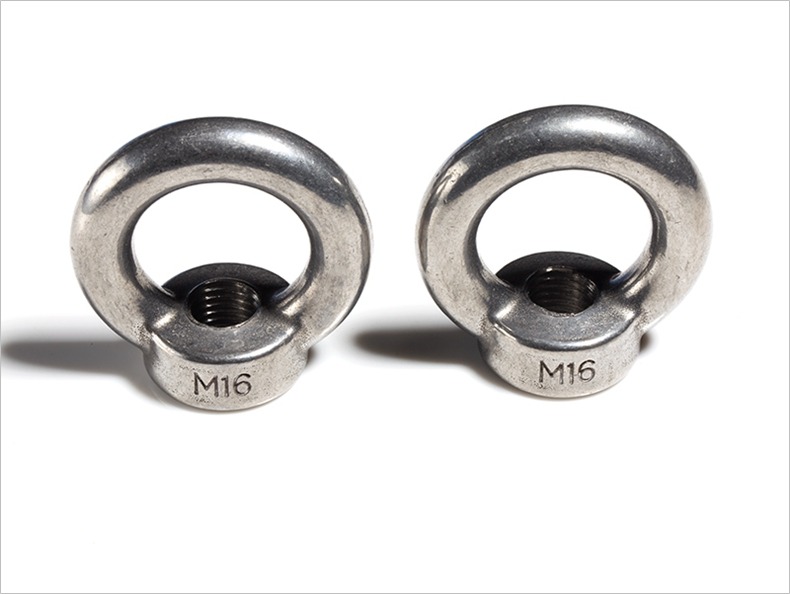

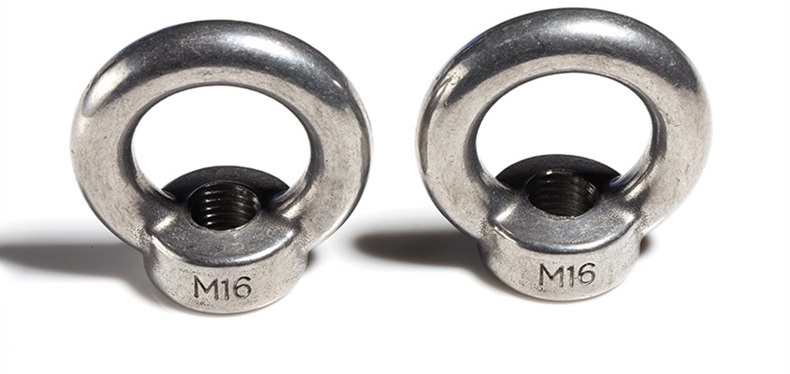

Eye nut

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Lifting Eye Nut

  • Surface:

    Black oxide, Nickel, Possivation, Tin, Zinc Clear, Zinc Yellow, Zinc black

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M6-M100,Custom-made

  • MOQ:

    According to size
inquiry now
product details

Eye nuts are fasteners with a looped head. They are designed to receive a hook or rope. Eye nuts are rated for different types of applications and are oval or round in shape. Load-rated eye nuts are designed for vertical lifting, but are not recommended for use with angular lifts.

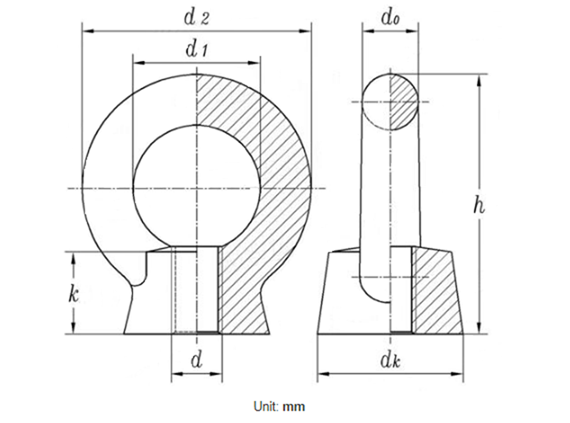

Nominal Diameter d M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M64 M80×6
d2 32.6 41 50 60 72 90 110 133 151 170 210 266
d1 20 25 30 35 40 50 60 70 80 90 110 140
d0 6.3 8 10 12.5 16 20 25 31.5 35.5 40 50 63
dk 16 20 25 30 35 45 60 70 80 90 110 130
k 12 15 19 23 28 38 46 55 64 73 90 108
h 39.3 48.5 61 72 86 111 135 161.5 184.5 208 256 317
